Five9 Global Dial Attempt Counter

Five9 tracks dial attempts per list, per campaign — but not globally, per contact, across every list they sit in. If the same phone number lives in five lists and three campaigns, you have no single field to read that tells you “we’ve dialed this person 12 times.” This recipe fixes that: on every call, it updates a contact-level field (e.g. dial_attempts) with an incremented count, scoped by whatever keys you choose (Salesforce ID, Account ID, email, or a composite).

Workflow JSON

five9-global-dial-attempts-counter.json

{
  "name": "five9-global-dial-attempts-counter",
  "description": "Five9 doesn't have a built in global dial attempts counter. This solves that problem by allowing an update back into Five9 on the specified contact, incrementing the dial attempt counter.",
  "steps": [
    {
      "input": {
        "key_names": "{{ initial.key_fields | split: ',' }}",
        "key_values": "{{ initial.key_values | split: ',' }}",
        "counter_after": "{{ initial.counter_value | toInt | plus: 1 | toString }}",
        "counter_field": "{{ initial.counter_field }}",
        "counter_before": "{{ initial.counter_value }}"
      },
      "stepId": "parse-inputs",
      "stepType": "core.set-variable"
    },
    {
      "input": {
        "record": "{{ $vars.key_names | zip: $vars.key_values, $vars.counter_field, $vars.counter_after }}",
        "keys": "{{ $vars.key_names }}"
      },
      "stepId": "build-record",
      "stepType": "core.set-variable"
    },
    {
      "input": {
        "records": "{{ $util.emptyArray | push: $vars.record }}",
        "connection": "{{ $connections.five9 }}",
        "waitForResult": true,
        "contactUpdateConfig": {
          "crmUpdateSettings": {
            "crmAddMode": "DONT_ADD",
            "crmUpdateMode": "UPDATE_ALL",
            "allowDataCleanup": false,
            "failOnFieldParseError": false
          },
          "dynamicFieldMapping": {
            "keys": "{{ $vars.keys }}"
          }
        }
      },
      "stepId": "contact-update",
      "stepType": "five9.contact-update",
      "continueOnError": true
    },
    {
      "input": {
        "audit_key": "{{ initial.key_values }}_{{ $util.timestamp }}",
        "audit_entry": {
          "number": "{{ initial.number }}",
          "success": "{{ contact-update.$meta.success }}",
          "timestamp": "{{ $util.now }}",
          "key_fields": "{{ initial.key_fields }}",
          "key_values": "{{ initial.key_values }}",
          "counter_after": "{{ $vars.counter_after }}",
          "counter_field": "{{ initial.counter_field }}",
          "error_message": "{{ contact-update.five9Error.message | default: contact-update.$meta.error.message | default: '' }}",
          "counter_before": "{{ initial.counter_value }}"
        }
      },
      "stepId": "build-audit-entry",
      "stepType": "core.set-variable"
    },
    {
      "input": {
        "key": "{{ $vars.audit_key }}",
        "value": "{{ $vars.audit_entry }}",
        "tableName": "global_contact_counter_audit",
        "expiration": {
          "enabled": true,
          "ttlSeconds": 2592000
        }
      },
      "stepId": "write-audit-log",
      "stepType": "data-store.set"
    }
  ],
  "initial": {
    "number": "7042662236",
    "key_fields": "salesforce_id",
    "key_values": "abc123",
    "counter_field": "dial_attempts",
    "counter_value": "0"
  },
  "options": {
    "stopOnError": true,
    "executionMode": "auto",
    "timeoutMilliseconds": 300000
  },
  "version": "1.0.0",
  "inputSchema": {
    "type": "object",
    "properties": {
      "number": { "type": "string" },
      "key_fields": { "type": "string" },
      "key_values": { "type": "string" },
      "counter_field": { "type": "string" },
      "counter_value": { "type": "string" }
    }
  }
}

Setup

Connections needed:

Connection	Why
Five9	The five9.contact-update step writes the incremented counter back into every matching contact

Trigger: a Webhook trigger fired at call end. Point your telephony platform’s “call completed” webhook at this workflow and pass the contact’s current counter value in the body. If you’re on Five9’s Supervisor events, use a Five9 Supervisor trigger instead and pull the fields from the event payload.

Field	Value
Name	increment-dial-attempts
Method	POST
Authentication	On — generate a secret

The expected webhook body:

{
  "number": "7042662236",
  "key_fields": "salesforce_id",
  "key_values": "abc123",
  "counter_field": "dial_attempts",
  "counter_value": "0"
}

key_fields and key_values are comma-separated so you can match contacts on a composite key — e.g. "salesforce_id,account_id" + "abc123,acc_789". counter_value is the current value read upstream; the workflow increments it and writes counter_value + 1 back.

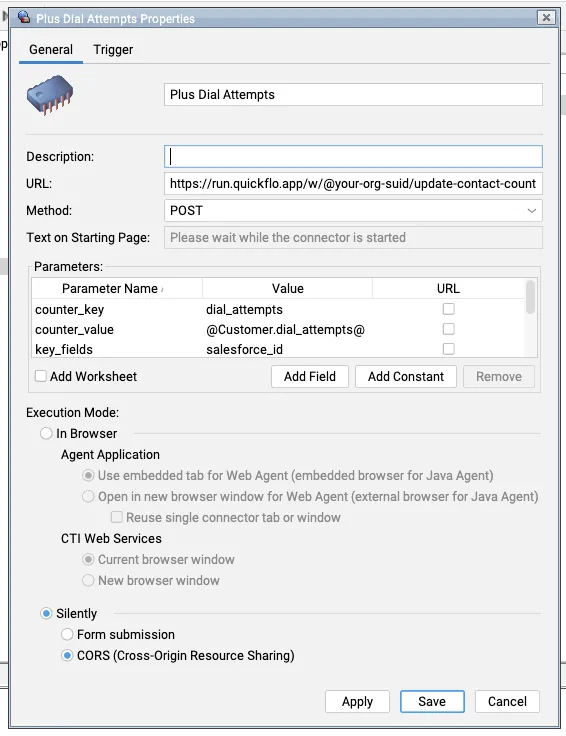

Wire up the Five9 connector

On the Five9 side, create a Connector that fires this workflow every time a call is dispositioned. In Five9’s supervisor app → Connectors → Add Connector, configure it like this:

Field	Value
Name	Plus Dial Attempts (or anything descriptive)
URL	https://run.quickflo.app/w/@your-org/increment-dial-attempts
Method	POST
Execution Mode	Silently → CORS (Cross-Origin Resource Sharing)

Then under Parameters, add these — the URL checkbox controls whether each one is passed as a query string parameter (checked) or in the POST body (unchecked):

Parameter Name	Value	URL?	Purpose
counter_field	dial_attempts	☐	Which Customer attribute to increment. Must match a contact field that exists in your Five9 CRM.
counter_value	@Customer.dial_attempts@	☐	The contact’s current counter value — Five9 substitutes this live at dial time. The workflow adds 1 and writes it back.
key_fields	salesforce_id	☐	Which Customer attribute Five9 should match on when updating. Comma-separate (salesforce_id,account_id) for composite keys.
key_values	@Customer.salesforce_id@	☐	The contact’s current value for the key field(s). Comma-separate in the same order as key_fields for composites.
number	@Call.number@	☐	Included in the audit log only — not used for matching.
token	whs_… (your webhook secret)	☑	Passed as a URL query string so Five9’s CORS mode can authenticate without a body auth scheme.

Why `token` is a URL parameter

Five9’s CORS execution mode can’t set custom headers, so standard Authorization: Bearer header auth won’t work. QuickFlo’s webhook trigger accepts the secret via the ?token=… query string instead — check the Allow token as query parameter option on the trigger.

Trigger: On Call Dispositioned

Switch to the Trigger tab and pick On Call Dispositioned, then select only the dispositions that should count as a dial attempt — usually anything in the “attempted contact” bucket (No Answer, Busy, Left Voicemail, Connected, etc.) and not disposition-less outcomes like “Abandoned in Queue” or “Agent Error.” The dispositions you pick here define what “dial attempt” means in your data, so choose the set carefully.

Attach the connector to your campaigns

Five9 connectors don’t fire globally — they have to be explicitly attached to each campaign that should use them. In the campaign properties, open the Connectors tab and add the Plus Dial Attempts connector to every campaign whose calls you want counted. Any campaign where the connector isn’t attached will still dial the contact, but its attempts won’t roll into the global counter — a silent gap that’s easy to miss.

Attach it everywhere you dial

The counter is only as global as the set of campaigns you attach the connector to. If two out of three outbound campaigns have it and one doesn’t, you’ll under-report by whatever share of dials came from the third. Attach it to every outbound campaign, and add that step to your new-campaign checklist.

How it works

1. parse-inputs (core.set-variable) — splits the CSV-style key_fields and key_values into arrays, computes counter_after = counter_value + 1, and stashes everything in $vars for later steps.
2. build-record (core.set-variable) — the core of the recipe. Uses the zip filter to pair the two parallel arrays into { salesforce_id: "abc123", ... }, then appends counter_field → counter_after as one extra KV pair: {{ $vars.key_names | zip: $vars.key_values, $vars.counter_field, $vars.counter_after }}. The same expression builds $vars.keys for Five9’s dynamicFieldMapping.
3. contact-update (five9.contact-update) — pushes the record into Five9, telling it which fields are the lookup keys ($vars.keys) and which fields to update (everything else, including the incremented counter). continueOnError: true so a Five9 failure doesn’t lose the audit entry.
4. build-audit-entry (core.set-variable) — assembles an audit object capturing the before/after counter values, the Five9 result, and any error message.
5. write-audit-log (data-store.set) — writes the audit entry to a global_contact_counter_audit data store table, keyed by key_values + timestamp. A 30-day TTL keeps the table from growing unbounded.

What to customize first

• Match on a composite key. Pass "salesforce_id,account_id" as key_fields and "abc123,acc_789" as key_values when a single Salesforce ID isn’t unique enough or you don’t have a crm id to match as a primary key — the zip filter handles the extra columns with no code changes.
• Aggregate in a dashboard. The global_contact_counter_audit table is ready-made for a dashboard — pivot by key_fields × success to see which identity fields are producing Five9 update failures, or plot counter_after over time to watch dial velocity per contact.
• Adjust the audit retention. The default ttlSeconds: 2592000 is 30 days. Bump it for longer forensic windows, or drop the data-store.set step entirely if you don’t need an audit trail.
