Data Stores

Data stores provide managed key-value storage for your workflows. Use them to persist data across executions, maintain state between steps, and build lookup tables — all scoped to your organization and accessible from any workflow.

How Data Stores Work

Data is organized into tables, each containing key-value entries. Tables are shared across all workflows in your organization, so any workflow can read or write to any table.

Concept	Description
Table	A named collection of key-value entries (like a database table)
Key	A unique identifier within a table (up to 1,024 characters)
Value	Any JSON-serializable data — strings, numbers, booleans, objects, or arrays

Creating a Table

Tables are created automatically when you first write to them using a data store step. You can also create tables from the Data Store page in the sidebar, or from the data store step configuration — the table name dropdown lets you select existing tables or type a new name to create one.

Data Store Steps

QuickFlo provides five core step types for reading and writing data, plus three atomic primitives for concurrency (covered below). Each step is configured through the visual form builder in the workflow editor.

Get

Retrieve a single value by key.

Field	Description
Table	Select or type a table name
Key	The key to look up (supports templates, e.g., user-{{ initial.userId }})

Output available to later steps:

{{ get-user.value }}       // the stored value (or null if not found)
{{ get-user.found }}       // true or false
{{ get-user.value.email }} // access nested fields from stored objects

Set

Store or update a value. If the key already exists, its value is replaced.

Field	Description
Table	Select or type a table name
Key	The key to store under (supports templates)
Value	Key-value pairs defining the data to store
Expiration	Optional TTL — the entry is auto-deleted after this time

Expiration Settings

Option	Description
No expiration	Entry persists until manually deleted (default)
Custom TTL	Set a duration from 1 minute to 1 year

Tip

When expiration is enabled, the default TTL is 30 days. You can disable expiration entirely to keep entries indefinitely.

A TTL turns a table into a cache: store an expensive result under a stable key, read it back until it expires, recompute on the miss. Data stores are persisted to disk, so they suit caching that tolerates minutes-to-days staleness. For sub-second caching, reach for an external cache over an HTTP step.

Output:

{{ set-user.success }}   // true if stored successfully
{{ set-user.key }}       // the key that was written

List

List all keys in a table with optional substring filtering on the key name.

Field	Description
Table	The table to list keys from
Key contains	Optional — return only keys whose name contains this substring (case-insensitive). Note: this is a substring/contains match, not a strict prefix.
Limit	Max results to return (1–1,000, default 100)
Offset	Skip this many results (for pagination)

Output:

{{ list-keys.keys }}      // array of key strings
{{ list-keys.total }}     // total matching keys
{{ list-keys.hasMore }}   // true if more results exist

Query

Search entries by their stored values using field-level filters — like a simple database query.

Field	Description
Table	The table to query
Filters	One or more conditions on value fields
Filter Mode	All (every filter must match) or Any (at least one must match)
Limit	Max results (1–1,000, default 100)
Offset	Skip results for pagination

Each filter has three parts:

Part	Description	Example
Field	Dot-notation path into the stored value	status, user.email, tags
Operator	Comparison type	equals, contains, greater than, etc.
Value	The value to compare against	active, 100, true

Available operators:

Operator	Description
equals	Exact match
not_equals	Not equal
contains	Text contains substring
array_contains	Array includes a value
gt	Greater than
gte	Greater than or equal
lt	Less than
lte	Less than or equal

Output:

{{ query-users.entries }}           // array of { key, value } objects
{{ query-users.entries[0].key }}    // first result's key
{{ query-users.entries[0].value }}  // first result's value
{{ query-users.total }}             // total matches
{{ query-users.hasMore }}           // true if more results exist

For race-free reads-and-writes (compare-and-swap, claiming from a queue, create-or-update), see Atomic Concurrency Primitives below. They use the same filter shape Query does.

Delete

Remove a single entry by key.

Field	Description
Table	The table to delete from
Key	The key to delete (supports templates)

Output:

{{ delete-user.deleted }}   // true if the key existed and was deleted
{{ delete-user.key }}       // the key that was deleted

---

Atomic Concurrency Primitives

Two workflows (or two runs of the same workflow) that operate on the same row can race: each reads the same value, each decides independently, each writes — and the writes overlap. The atomic primitives run the read, the check, and the write as one indivisible operation, so this can’t happen.

Three primitives cover the patterns below:

Step	What it does	Used in
data-store.atomic-update	Conditionally update one row by key.	Token bucket, Queue dispatcher, Stale-claim recovery
data-store.atomic-claim	Claim N rows matching a filter.	Queue dispatcher, Stale-claim recovery
data-store.atomic-upsert	Insert if absent, or mutate on conflict.	Process event once, Lease acquisition, Token bucket, Rate limit per key

Note

An empty result is not an error. If the guard didn’t match, the queue was empty, or you lost a race, the return value tells you so — updated: false, claimed: [], inserted: false. Branch on the return; don’t try to catch an exception.

Shared building blocks

All three primitives share two pieces of configuration:

• where — the same {field, operator, value} filter shape that Query uses, applied to the stored values. Same operators, same path syntax for nested fields.
• set — a list of {field, operation, value} mutations applied to the value. operation is either set (overwrite) or increment (add a signed number; a missing field starts from 0).

Both accept templates: {{ $util.now }}, {{ $execution.id }}, references to prior step outputs, and so on.

Atomic Update

Conditionally mutate a single row identified by key. The where clause is the compare-and-swap guard: the update applies only if all (or any) conditions match the row’s current value. If the guard fails, nothing changes and updated is false.

Field	Description
Table	The table containing the row
Key	Exact key of the row (supports templates)
Guard Conditions (optional)	Preconditions on the current value; the update applies only if they match
Match	all (AND) or any (OR) for combining guards
Set	One or more mutations to apply when the guard matches
Return Fields (optional)	Limit the returned value to specific top-level fields

Output:

{{ decrement-tokens.updated }}      // true if the guard matched and the row was updated
{{ decrement-tokens.value }}        // the new value if updated, else null
{{ decrement-tokens.key }}          // the key that was targeted

atomic-update doesn’t create the row if it’s absent. Seed it first with atomic-upsert.

A cross-execution counter is exactly this shape: seed the row with atomic-upsert, then atomic-update with a count increment 1 mutation on each run. The increment happens inside the row, so concurrent runs never lose a count the way a separate Get-then-Set would.

Atomic Claim

Claim up to limit rows that match where, marking them via set in the same operation. The data store guarantees that two concurrent claims never grab the same row; losers skip past locked rows and continue. This is the queue-drain primitive.

Field	Description
Table	The queue table
Select Rows (optional)	Conditions identifying claimable rows (e.g. status equals pending)
Match	all or any for combining conditions
Claim Mutation	How to mark claimed rows. Defaults to status → in_flight, claimedAt → {{ $util.now }} (so stale claims can be recovered), and claimedBy → {{ $execution.id }} (so claimed rows correlate to the run that holds them in traces).
Order By	Column (createdAt or recordTimestamp) and direction. Default: FIFO (createdAt asc).
Limit	Max rows per call (default 10, max 1,000)
Return Fields (optional)	Limit returned value to specific top-level fields

Output:

{{ drain-queue.claimed }}            // array of { key, value } that this call won
{{ drain-queue.count }}              // number of rows claimed (0 = nothing available)
{{ drain-queue.claimed[0].value }}   // first claimed row's value

An empty claimed array means nothing was available, not an error.

Atomic Upsert

Insert a row when it doesn’t exist, or apply set to the existing row when it does. The conflict target is the (organization, table, key) uniqueness constraint. The inserted flag in the output tells you which branch fired — useful for any “first writer initializes, others update” pattern.

Field	Description
Table	The table
Key	The conflict key
Insert Value	Full value to insert when the row doesn’t yet exist
Update Mutation	Mutations to apply when the row already exists (the conflict branch)
Return Fields (optional)	Limit returned value to specific top-level fields

Output:

{{ seed-bucket.inserted }}   // true if a new row was inserted, false if an existing row was updated
{{ seed-bucket.value }}      // the resulting value
{{ seed-bucket.key }}        // the key

---

Concurrency Patterns

Idempotency / Process Once

Handle each event exactly once, even when the source delivers duplicates. The event’s unique ID becomes the dedupe key; atomic-upsert with set: [] claims the event in one operation — the first caller inserts, every subsequent delivery sees the existing row and skips.

Step	Configuration
Atomic Upsert	Table: processed_events, Key: {{ initial.eventId }}, Insert Value: {"claimedAt": "{{ $util.now }}", "payload": "{{ initial.payload }}"}, Update Mutation: (empty list — pure seed-if-missing semantics)
If	Condition: {{ claim.inserted }} equals true — first delivery, do the work; else skip as duplicate

The insert is atomic, so two concurrent deliveries can’t both pass the dedupe check; one succeeds, and the others see the row already exists.

Recipe: Process Event Once — copy-pasteable workflow.

Token Bucket (rate limiting)

Limit how many parallel callers can proceed in a window. Each caller decrements a shared counter; when the counter hits zero, further callers lose the race and back off.

Seed the bucket once (idempotent: repeated runs leave it alone):

Step	Configuration
Atomic Upsert	Table: rate_limits, Key: external-api, Insert Value: {"tokens": 100}, Update Mutation: (empty — nothing to do on conflict)

Decrement on each call:

Step	Configuration
Atomic Update	Table: rate_limits, Key: external-api, Guard: tokens gt 0, Set: tokens increment -1
If	Condition: {{ decrement.updated }} equals false (back off, retry, or give up)

When tokens reaches 0, the guard tokens gt 0 no longer matches; the row is untouched, updated is false, and the caller knows to back off.

Rate limit per key

Rather than a fixed pool of tokens, the per-key pattern advances a shared “next available at” timestamp by a fixed interval on each call. Each caller atomically reserves its slot and waits until that slot before proceeding. Different from the token bucket in that calls space out evenly rather than burst-then-refill.

Recipe: Rate-Limited HTTP Calls — the full workflow with reset-if-stale handling.

Lease Acquisition

Only one workflow at a time holds the lease (for example, a single dispatcher). The first caller creates the lease; subsequent callers see it already held and back off until it’s released.

Step	Configuration
Atomic Upsert	Table: leases, Key: dispatcher, Insert Value: {"holder": "{{ $execution.id }}", "expiresAt": "..."}, Update Mutation: (empty — leave the existing lease alone)
If	Condition: {{ acquire.inserted }} equals true (you hold the lease; otherwise back off)

Lease renewal is an atomic-update against the same key with a guard on holder (only the current holder may extend) and a fresh expiresAt.

Recipe: Leader Election Lease — full workflow with the if/else branch and the release step.

Queue Drain (Producer / Dispatcher)

Producers enqueue work into a shared table; one or more dispatchers drain at a controlled rate. The atomic claim guarantees no row is processed twice across concurrent dispatcher runs — concurrent dispatchers either get disjoint batches or one gets nothing.

Producer workflows add entries to a pending_ops table using atomic-upsert (or plain Set) with {"status": "pending", "payload": ...}.

Dispatcher workflow runs on a schedule:

Step	Configuration
Atomic Claim	Table: pending_ops, Select Rows: status equals pending, Order By: createdAt asc (FIFO), Limit: 10
For Each	Items: {{ drain.claimed }} (process each claimed op via HTTP, etc.)
Atomic Update (inside For Each)	Table: pending_ops, Key: {{ $item.key }}, Guard: claimedBy equals {{ $execution.id }}, Set: status → done (or status → failed with error details)

The claim marked the rows in_flight in the same step that returned them, so no other dispatcher run can pick them up. If the workflow crashes mid-process, the rows stay in_flight — which the stale-claim recovery pattern below handles.

Recipe: Async Queue Dispatcher — full workflow including stale-claim recovery as a separate scheduled run.

Stale-Claim Recovery

If a dispatcher crashes after claiming but before completing, the claimed rows are stuck at status = in_flight. A second scheduled workflow re-claims any in-flight row whose claimedAt is older than a threshold:

Step	Configuration
Atomic Claim	Table: pending_ops, Select Rows: status equals in_flight AND claimedAt lt {{ stale_threshold }}, Set: status → in_flight, claimedAt → {{ $util.now }} (re-stamps the claim)
For Each	Process exactly as in the main drain

The default atomic-claim set rows already write claimedAt = {{ $util.now }}, so this works out of the box.

Note

The filter combines conditions with a single all or any mode; it can’t express “pending OR (in_flight AND stale)” in one call. Run the normal drain and the stale-claim recovery as two separate scheduled passes.

What’s not supported

These primitives are deliberately scoped:

• Multi-step transactions that span workflow steps. Each primitive is one atomic operation, not a transaction block.
• Bulk multi-row updates by filter. That’s what atomic-claim is for. atomic-update is single-row by design.
• Claim-and-delete. atomic-claim marks rows in place (at-least-once delivery). Disposable queues would need a future mode: 'delete'.
• Priority queues (ordering by a stored value field). orderBy supports createdAt and recordTimestamp only.
• A reaper daemon for stuck rows. Use the stale-claim recovery pattern above instead.

---

Browsing Data in the UI

The Data Store page lets you browse, search, edit, and manage your data store entries directly from the QuickFlo UI.

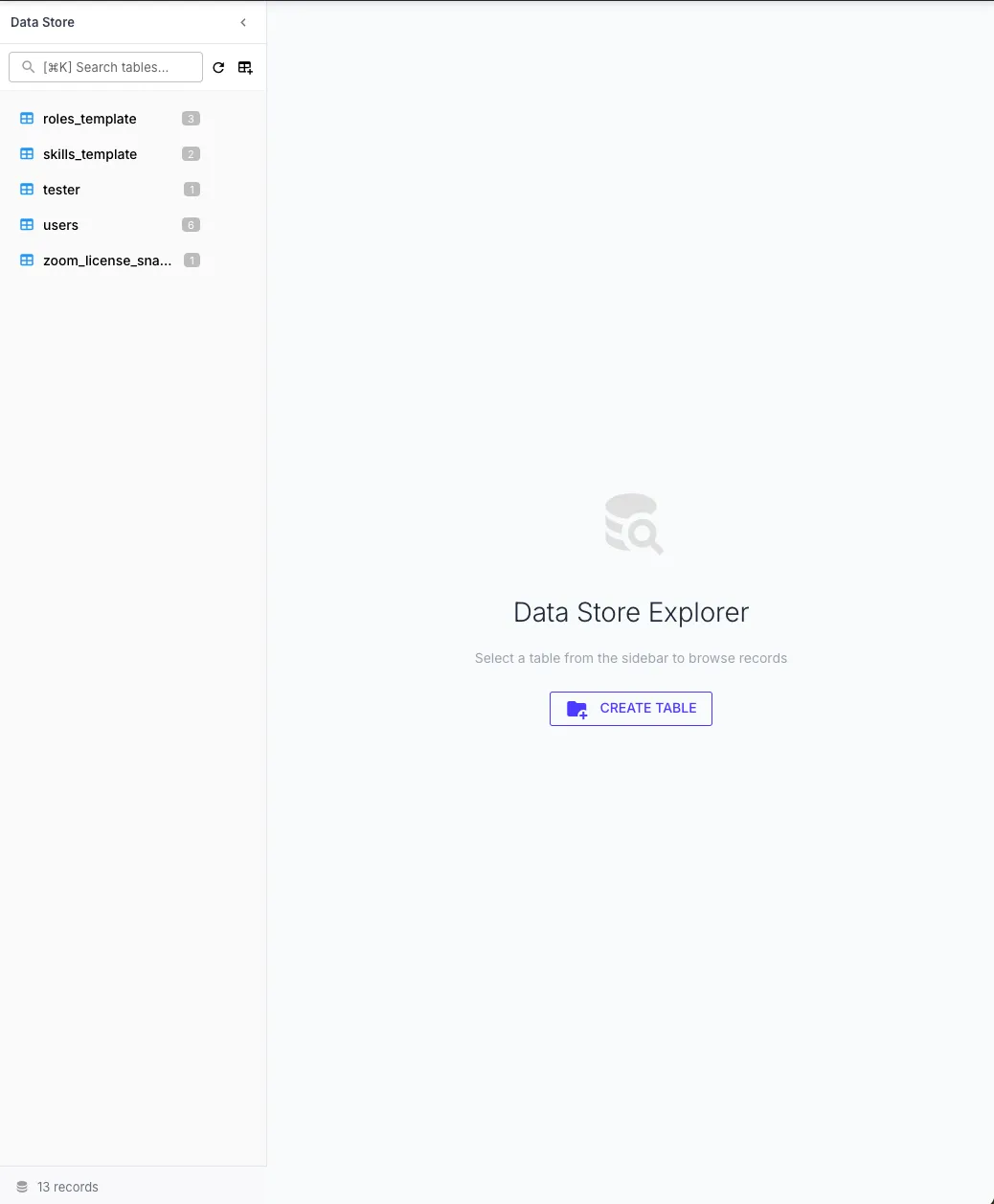

Tables Sidebar

The left sidebar lists all tables in your organization with record counts. Use the search field at the top to filter tables by name. You can also create new tables or refresh the list from the toolbar icons.

Records Table

Selecting a table shows all its entries in a sortable table with Key, Created, and Updated columns. Each row has edit and delete action buttons. Click any row to open the detail panel.

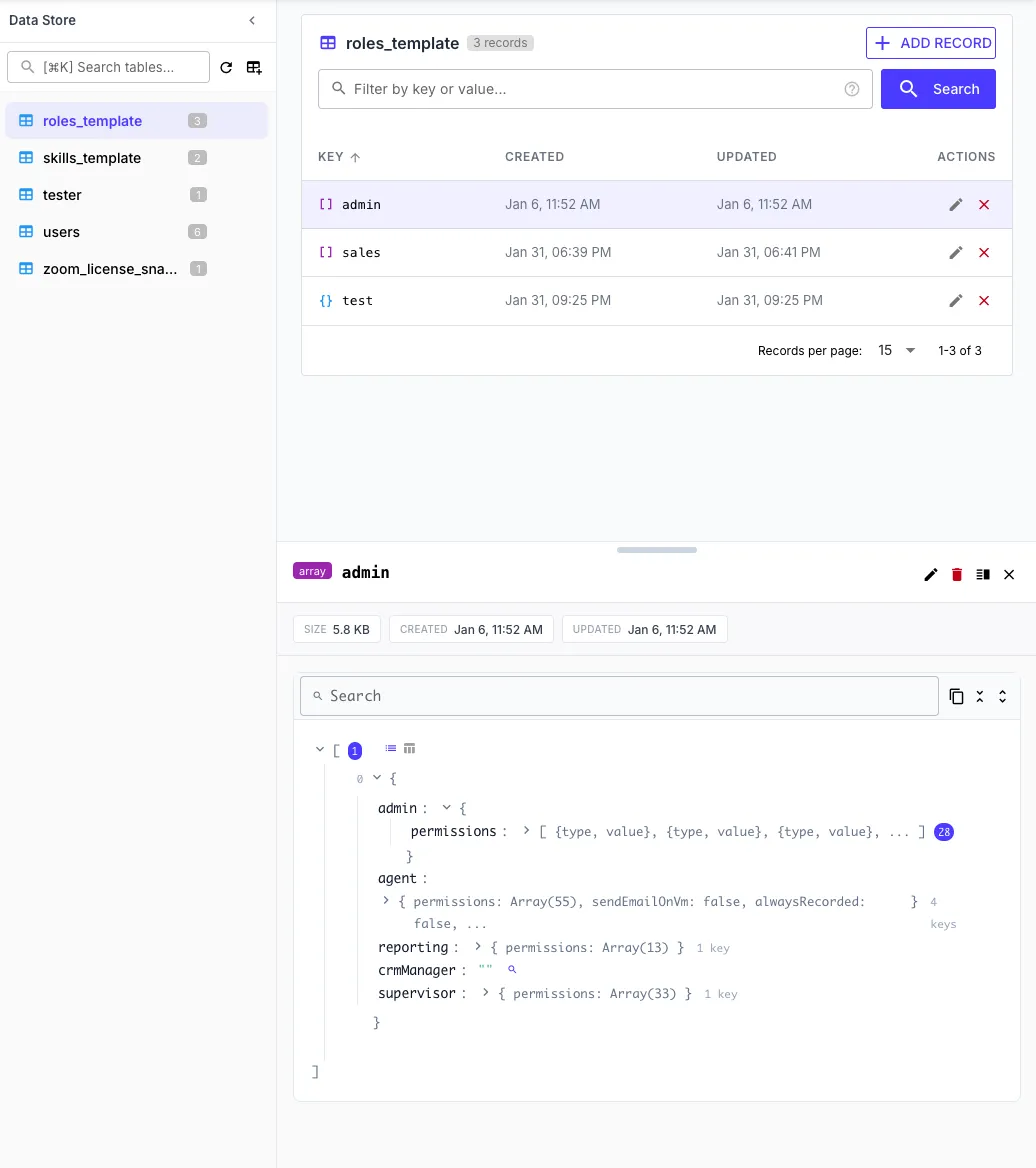

Detail Panel

Clicking a record opens a detail panel showing:

• Metadata — size, created date, updated date, and expiry countdown (if set)
• Value preview — the full stored value with syntax highlighting and expandable tree view
• Clickable values — click any primitive value in the tree to quickly filter by it

From the detail panel you can edit, delete, or copy the key.

Searching and Filtering

The search bar supports two modes:

Key search — type any text to filter entries by key (case-insensitive contains match):

user-123

Value search — use field:value syntax to filter by stored values. Click the Search button or press Enter to execute:

Syntax	Description	Example
field:value	Field contains value (partial match)	status:active
field:=value	Field equals value (exact match)	email:=john@example.com
field:!value	Field does not contain value	status:!deleted
field:!=value	Field does not equal value	status:!=inactive
[].field:value	Array element field contains value	[].level:123
field[]:value	Array field contains primitive value	tags[]:important

Active filters appear as badges below the search bar that you can dismiss individually.

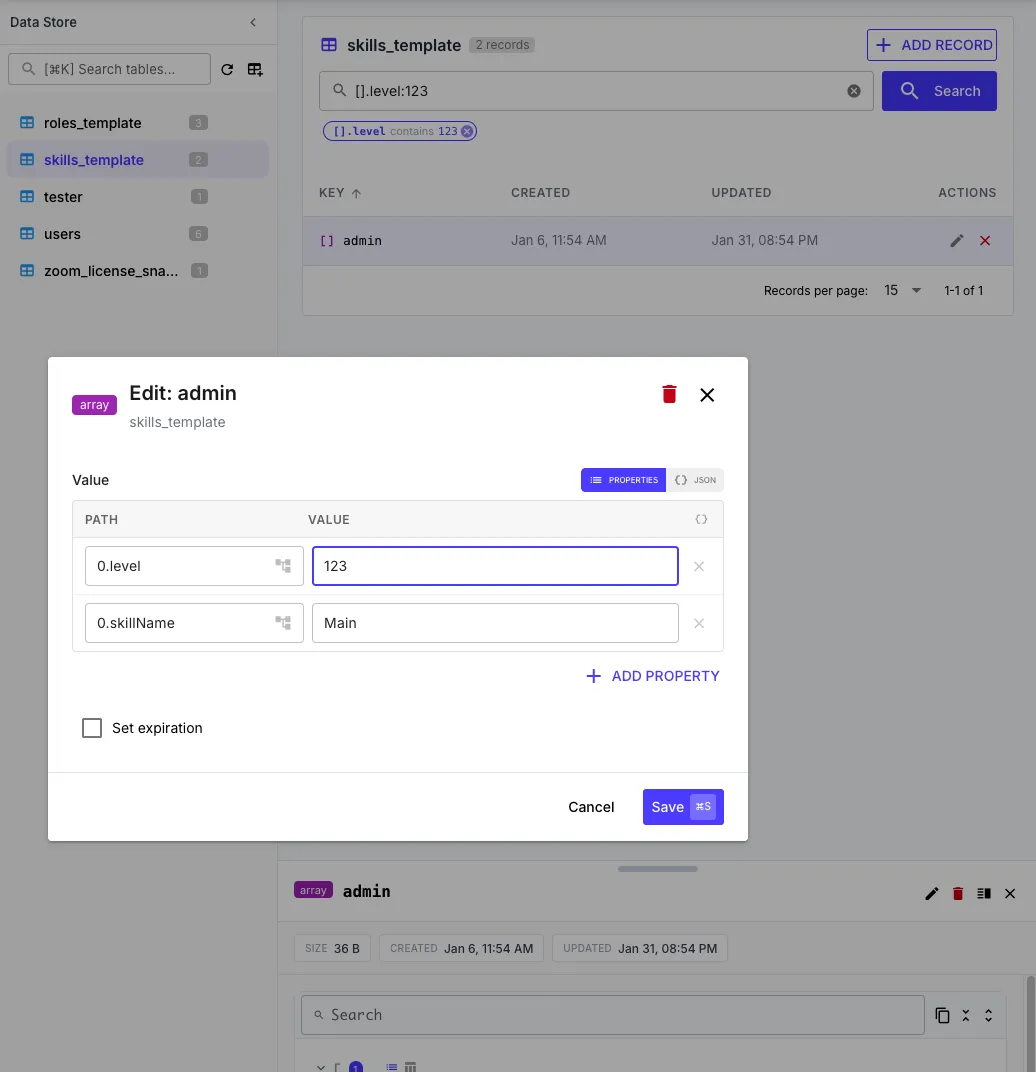

Editing Records

Click the edit icon on any record (or from the detail panel) to open the edit dialog. The editor supports two modes:

• Properties mode — visual path/value pairs with an “Add Property” button
• JSON mode — raw JSON editor for complex values

You can also toggle Set expiration to add or remove a TTL on the entry.

---

Export and Import

Export

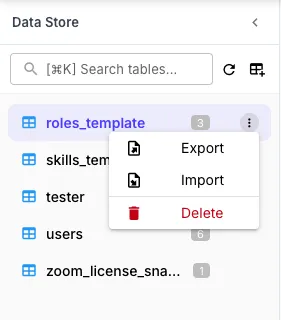

Export an entire table as a JSON file from the table toolbar. The export contains an array of key-value objects.

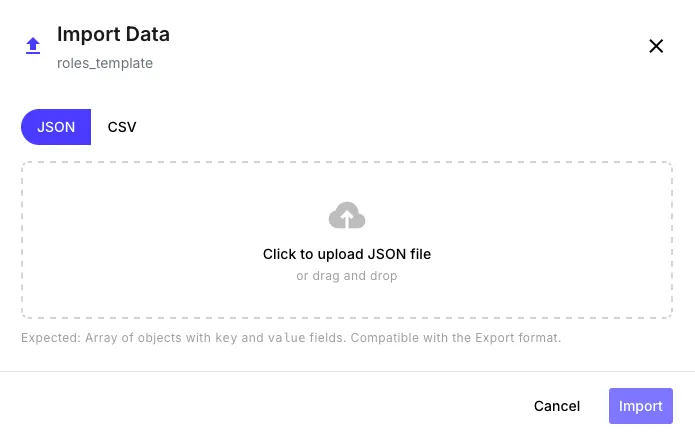

Import

Import data from JSON or CSV files into a table. The import dialog supports drag-and-drop file upload and shows a preview of entries before importing. Existing keys are updated (upsert) and new keys are created.

Note

Bulk import supports up to 50,000 entries per operation. Entries are processed in batches of 500 for memory efficiency, so very large imports stream through without holding the full payload in memory.

---

Sharing Tables Across Organizations

You can grant read-only access to a specific data store table from your organization to a partner organization. This is the foundation for cross-org analytics and partner dashboards — the partner can build dashboards on the shared table without ever seeing the rest of your data.

Creating a Share

From the data store table menu, choose Share with another organization and pick the target org. The user creating the share must belong to both organizations — the picker only shows orgs you’re a member of.

Field	Description
Source table	The table you’re sharing (read-only)
Target organization	The org that gains read access
Alias	Optional display name the partner sees instead of the raw table name

Creating or revoking a share requires the data-stores:admin role. Listing existing shares only requires data-stores:view.

What the Partner Sees

In the partner organization, the shared table appears as a data source in the dashboard builder, marked with a “shared from” badge so it’s clear it’s coming from another org. They can build pivot tables, charts, calculated fields, and global filters on top of it just like a native table — the analytics engine swaps in the owner org’s ID for WHERE clauses on shared queries.

Revoking a Share

Click Revoke on a share at any time. Revocation is a soft delete (so audit history is preserved) and takes effect immediately — any in-flight queries finish, but new queries against the shared table from the partner org return an error and any partner widgets backed by the share surface that error inline.

Note

Shares are read-only and table-scoped. The partner can’t write to your tables, can’t see other tables in your org, and can’t share your table further. If you need to grant write access too, do it via a workflow trigger the partner can call.

Visualizing Data

Any data store table can be turned into a dashboard with charts, pivot tables, filters, and calculated fields — no extra schema, no separate analytics database. Point a data source at the table and you’re done. See Dashboards for the full walkthrough.

---

Limits

Limit	Value
Key length	1,024 characters
Table name length	255 characters
Minimum TTL	1 minute
Maximum TTL	No expiration (entries persist indefinitely)
Default TTL (when expiration enabled)	30 days
Query limit per request	1,000 entries
Bulk import per request	50,000 entries
