Return Step

The return step terminates workflow execution immediately and optionally shapes the response sent back to the caller. All remaining steps after the return are skipped. The step editor adapts its form to the trigger type — webhook, form (post-submit), form (confirmation), form (prefill), or sub-workflow.

Tip

See the return step in a real workflow: Webhook → Weather API shapes a webhook response with templated fields, and Multi-Step Form with Confirmation demonstrates formPrefill, formConfirmation, and formSubmission responses across three connected workflows.

Webhook Response

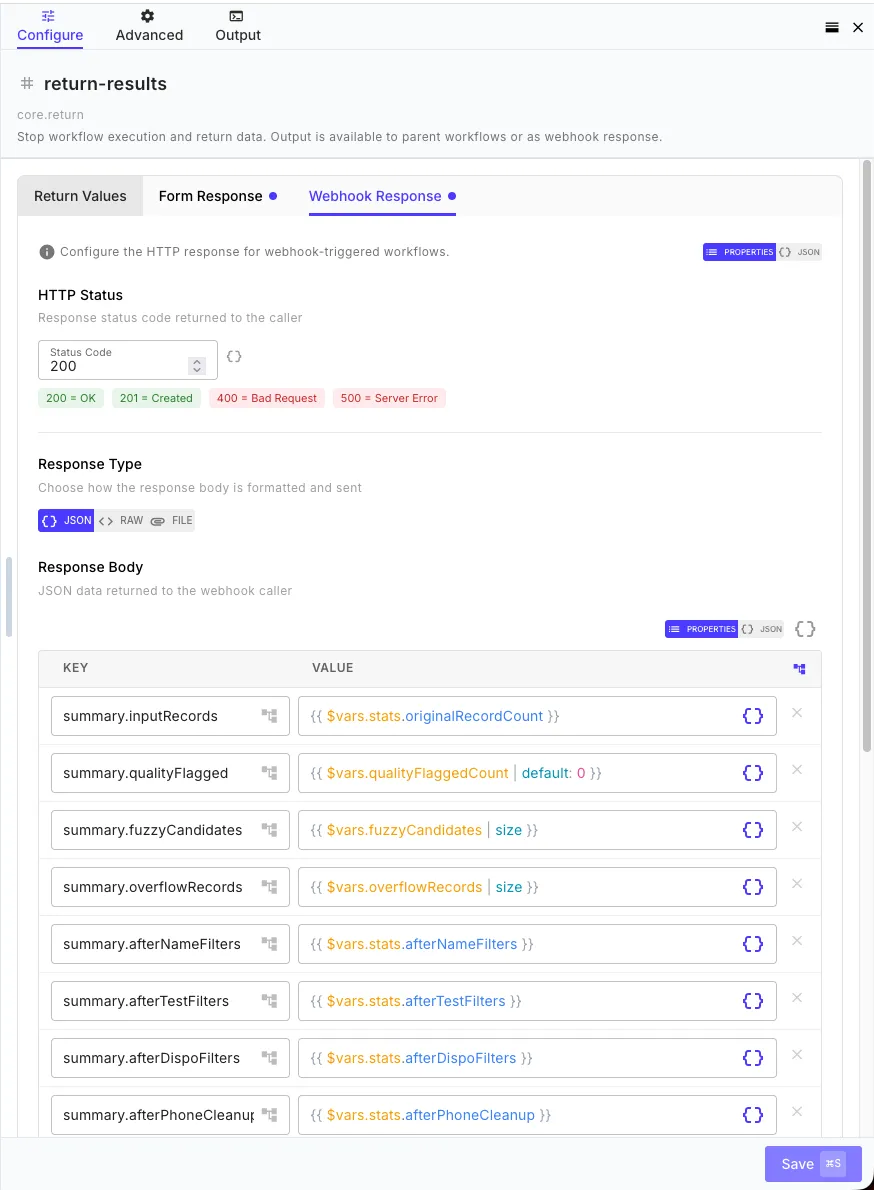

When a workflow is triggered by a webhook, the return step controls what the caller receives back as the HTTP response. Configure it in the Webhook Response tab of the return step editor:

Field	Description	Example
Status Code	HTTP status code to return (default 200)	201
Body	Response body — JSON object, string, or template expression	{ "userId": "{{ create-user.id }}" }
Body Encoding	json (default), text (raw string / XML / HTML), or base64 (binary file)	text
Content Type	MIME type for the Content-Type header (default application/json)	text/csv
Filename	If set, sets Content-Disposition so the caller’s browser triggers a download. Only meaningful with bodyEncoding: "base64".	report.csv
Headers	Optional custom response headers as a flat key→value map. Values support templates.	{ "X-Request-Id": "{{ start.id }}", "Cache-Control": "no-store" }

Reserved transport headers (Content-Length, Transfer-Encoding, Connection, Keep-Alive, Host) are ignored. Content-Type and Content-Disposition set via the Content Type / Filename fields take precedence over the same header set in Headers.

Form Submission Response

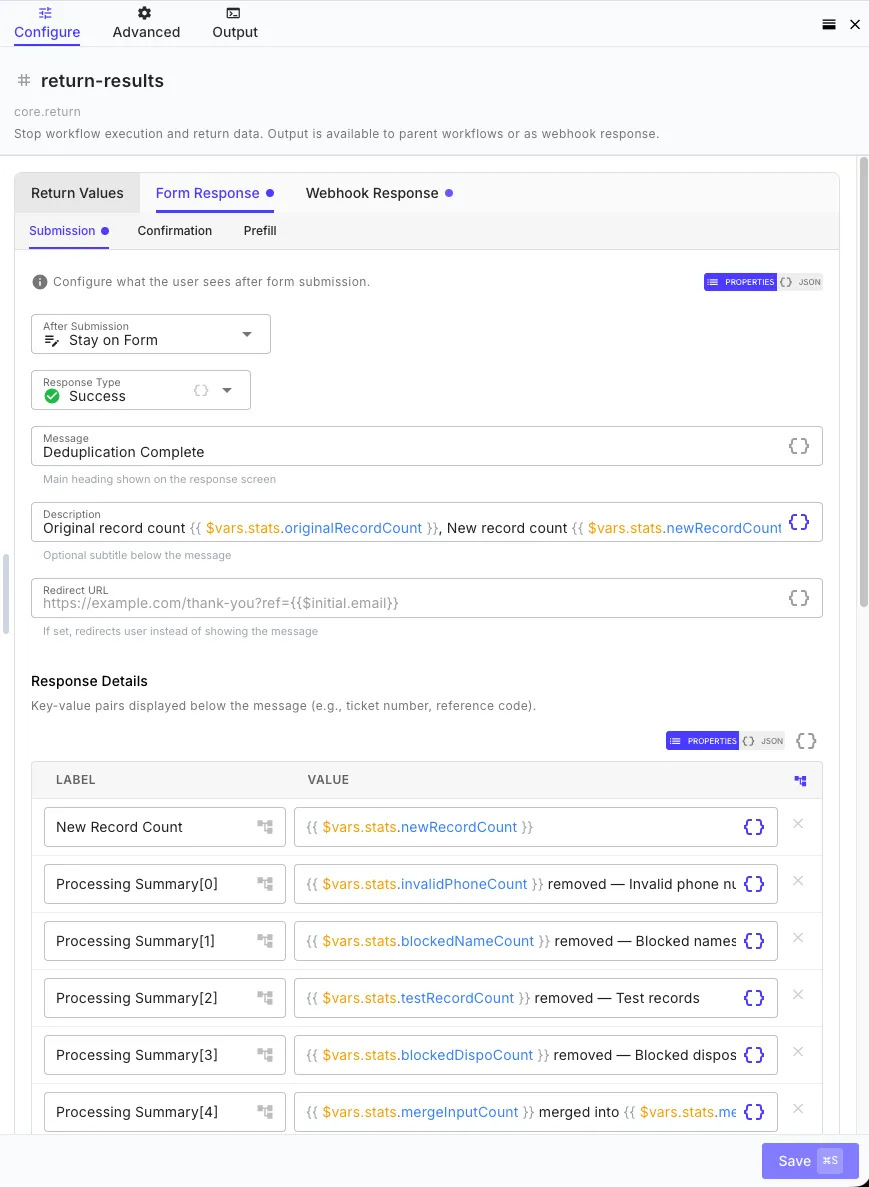

When triggered by a form, the return step controls what the submitter sees after submission. Configure it in the Form Response tab of the return step editor:

Field	Description	Example
Type	Visual style: success (green), error (red), warning (amber), or info (blue)	success
Message	Main heading shown to the user — supports templates	Thanks, {{ initial.name }}!
Description	Subtitle below the heading	Your request has been received.
Redirect URL	If set, redirects the user instead of showing the response screen — supports templates	https://example.com/thank-you?ref={{ create-order.id }}
Data	Key-value pairs displayed below the message as a structured detail table	{ "Reference": "{{ create-order.id }}", "ETA": "2 days" }
Actions	Array of [{ label, url, style?, mode? }] for action buttons. See Form Triggers — Action Buttons	[{ "label": "View order", "url": "..." }]
Behavior	redirect (default), stay, or reset — what happens after the user clicks Submit Another	stay

Form Confirmation Response

A confirmation workflow runs after the user clicks Submit but before the main workflow runs, and returns a structured summary that QuickFlo shows in a confirmation dialog. The user has to explicitly approve before the main workflow executes.

The confirmation workflow’s return step writes a formConfirmation object:

Field	Description
title	Dialog heading (e.g. "Confirm your order")
summary	Optional subtitle below the title
items	Array of detail rows: [{ label, value?, type? }]. type is 'info' (default), 'warning', or 'danger' and controls the row’s color.
warningMessage	Optional amber warning message displayed below the items

{
  "stepId": "review-summary",
  "stepType": "core.return",
  "input": {
    "formConfirmation": {
      "title": "Confirm your order",
      "summary": "Please review before submitting.",
      "items": [
        { "label": "Plan", "value": "Pro" },
        { "label": "Total", "value": "$99/month", "type": "info" },
        { "label": "Auto-renew", "value": "Enabled", "type": "warning" }
      ],
      "warningMessage": "Cancellation is subject to our refund policy."
    }
  }
}

If the confirmation workflow fails or returns an empty formConfirmation, the dialog still appears with a generic prompt — the user can confirm or cancel either way.

Form Prefill Response

A prefill workflow runs before the form renders and returns partial JSON Schema overrides for individual form fields — pre-populating defaults, restricting dropdown options based on the user’s session, hiding fields conditionally, and so on.

The prefill workflow’s return step writes a formPrefill object:

Field	Description
fields	Map of { fieldName: PrefillFieldOverrides } — each entry overrides a portion of the form’s JSON Schema for that field
meta.title	Optional — override the form’s title
meta.description	Optional — override the form’s description

Each PrefillFieldOverrides entry can carry any of the following — they’re merged into the field’s JSON Schema before the form renders:

Override	Purpose
default	Pre-populate the field’s value
enum	Restrict dropdown / multi-select options to this list
enumLabels	Map of { enumValue: humanLabel } for friendly display names
enumCaptions	Map of { enumValue: longerCaption } for descriptions under each option
visible	Set to false to hide the field for this session
readonly	Set to true to make the field read-only
properties	For table/multi-row fields, nested overrides per column

Example — pre-populate a contact form by looking up a customer from a query string token, restrict a region dropdown to the regions the user has access to, and hide the internal_notes field for non-admins:

{
  "stepId": "prefill",
  "stepType": "core.return",
  "input": {
    "formPrefill": {
      "fields": {
        "first_name": { "default": "{{ lookup-customer.body.firstName }}" },
        "email":      { "default": "{{ lookup-customer.body.email }}", "readonly": true },
        "region":     { "enum": "{{ lookup-customer.body.allowedRegions }}", "default": "{{ lookup-customer.body.defaultRegion }}" },
        "internal_notes": { "visible": false }
      },
      "meta": {
        "title": "Welcome back, {{ lookup-customer.body.firstName }}"
      }
    }
  }
}

If the prefill workflow fails or times out, the form still renders with its static schema — a non-blocking warning is set on the response, and the user can fill out the form as normal.

Sub-Workflow Return

When used inside a sub-workflow, the return step defines what the parent workflow receives as the step output. Add key-value pairs as flat top-level fields (no wrapper) for each value to return:

Key	Value
userId	{{ user-check.id }}
status	completed

The parent workflow accesses these via the sub-workflow step ID:

{{ run-sub-workflow.userId }}
{{ run-sub-workflow.status }}

Conditional Returns

Each step has a Skip If condition in its settings. You can use this to make a return step conditional — for example, returning a 404 early if a lookup fails, while letting the workflow continue if it succeeds.

Sync vs Async Execution

QuickFlo workflows can execute synchronously (wait for completion and return the result) or asynchronously (queue in the background and return immediately). The return step is what determines which mode is used.

How It’s Determined

The default mode is auto, which decides based on the trigger type and whether a return step exists:

Trigger	Has Return Step with Response?	Mode
Webhook	Yes (status code / body defined)	Sync — caller waits, gets return step output
Webhook	No	Async — caller gets 202 Accepted with executionId
Form	Yes (form response defined)	Sync — submitter sees the response
Form	No	Async — submitter sees a default success message
Schedule	N/A	Async always
Manual/API	N/A	Async by default

Tip

If you want a webhook to return data to the caller, just add a Return step with a status code and body. QuickFlo automatically detects this and runs the workflow synchronously so the caller gets the response.

Overriding the Mode

You can force sync or async execution regardless of auto-detection:

• Query parameter: ?mode=sync or ?mode=async on the webhook/execution URL
• Workflow settings: Set the execution mode to sync or async in the workflow settings dialog

What the Caller Receives

Synchronous — The caller gets exactly what the return step defines, with the status code you set (default 200).

Asynchronous — The caller gets a 202 Accepted response with an executionId that can be used to check status later.
