Template Syntax

QuickFlo has two template languages, used in different places:

• LiquidJS is the template engine for step configuration — use it to reference step outputs, environment variables, connections, and utility values anywhere in a step’s input fields.
• JSONLogic is the expression language for control-flow conditions and data-pipeline predicates. It’s used by core.if, core.switch, data.filter, data.reduce, and data.classify. JSONLogic operands accept Liquid {{ template }} form for data access, so the two languages compose naturally — see Conditionals & Data-Pipeline Logic below.

Referencing Step Outputs

Step outputs are referenced by their step ID directly — not nested under a steps prefix:

{{ my-step-id.someOutputField }}

For example, if you have a step with ID fetch-users that returns a list of users:

{{ fetch-users.data }}
{{ fetch-users.data[0].name }}
{{ fetch-users.totalCount }}

Step Metadata

Every step exposes a $meta object with execution metadata:

{{ fetch-users.$meta.success }}              // boolean — true if the step ran without throwing AND wasn't an error-severity operational failure
{{ fetch-users.$meta.skipped }}              // boolean — true if the step's skipCondition matched
{{ fetch-users.$meta.durationMilliseconds }} // number — execution time in ms
{{ fetch-users.$meta.stepType }}             // string — step type name
{{ fetch-users.$meta.operationalStatus }}    // 'ok' | 'warning' | 'error' (see Operational Errors)
{{ fetch-users.$meta.error }}                // object — present when the step *threw* (execution error)
{{ fetch-users.$meta.operationalErrors }}    // array — present when classifyOutput() flagged the result (operational error)

$meta.error vs $meta.operationalErrors vs $errors — three different surfaces, three different jobs:

• $meta.error (per-step, singular object) — only set when the step’s code threw. Use step.$meta.error.message to read the thrown message.
• $meta.operationalErrors (per-step, array) — only set when the step ran successfully but the result was a failure (HTTP 4xx, SMTP rejection, file not found, LLM rate limit). The original output is still readable. Use step.$meta.operationalErrors[0].code and .message.
• $errors (workflow-global, array) — every error from every step in the run, aggregated. Use it to ask “did anything fail anywhere?” — see Operational Errors below.

For “did this specific step succeed?” — step.$meta.success is the simplest check. It’s false for both thrown and operational failures. See the Error Handling cheat sheet for the full mapping.

$meta.error is an object, not a string. When present, it has these fields:

Field	Description
.message	Human-readable error message
.name	Error class name (e.g., WorkflowError, Five9Error)
.code	Optional machine-readable code (e.g., HTTP_CLIENT_ERROR)
.severity	Optional severity level
.isRetryable	Optional boolean — true if the engine considers the error transient

{{ fetch-users.$meta.error.message }}
{{ fetch-users.$meta.error.code }}

For operational errors specifically, use $meta.operationalErrors (an array) or the global $errors variable described below.

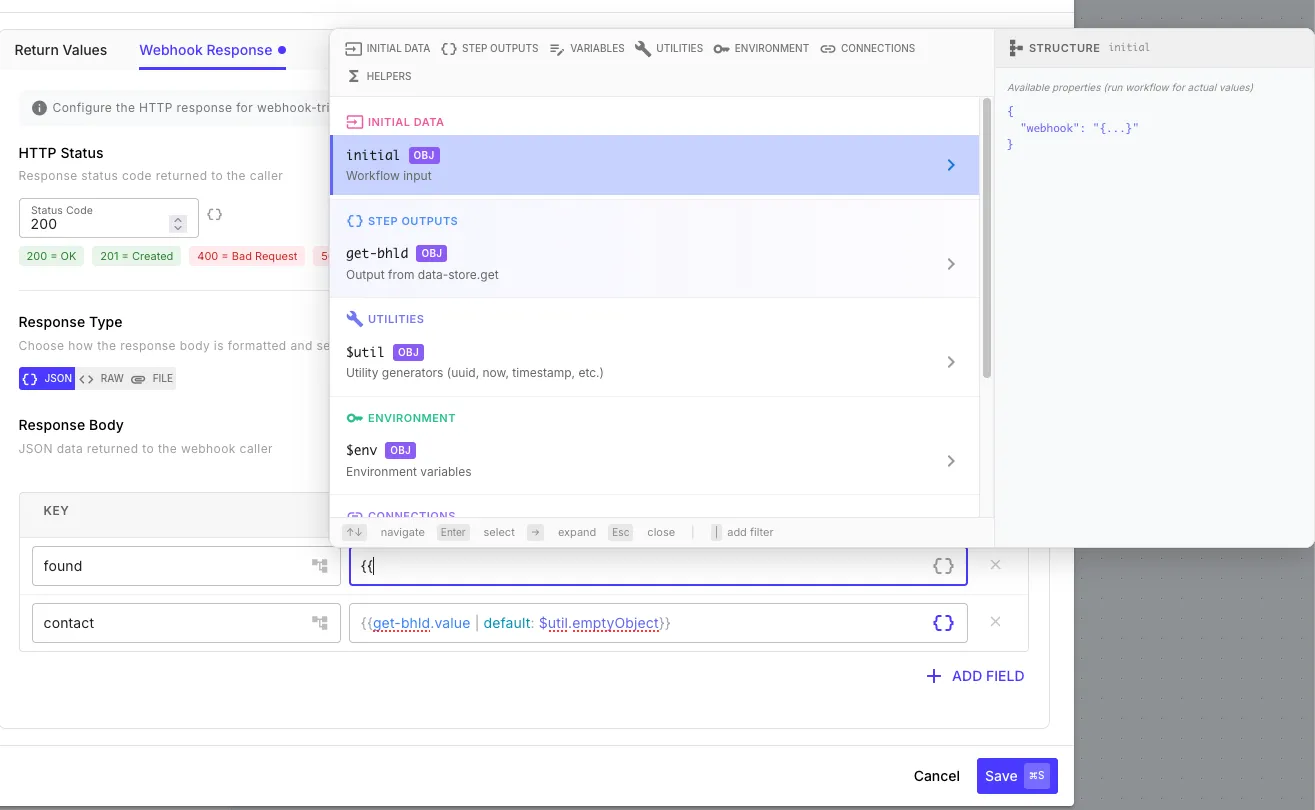

Template Variables

These global variables are available in every template expression:

Variable	Description
{{ initial.* }}	Data passed when the workflow execution started
{{ step-id.* }}	Output from a completed step, referenced by its step ID
{{ $env.* }}	Environment variables
{{ $connections.* }}	Connection credential objects
{{ $vars.* }}	Workflow variables set by set-variable steps
{{ $util.* }}	Utility generators (UUIDs, timestamps, etc.)
{{ $errors.* }}	Array of operational and execution errors that have accumulated during the run — see Operational Errors below

Initial Data

The initial object contains the data that triggered the workflow execution. Its structure depends on the trigger type.

Webhook Triggers

When a workflow is triggered via webhook, the request body fields are spread to the root of initial, and a webhook context object provides access to the full request:

{{ initial.someFieldFromBody }}
{{ initial.webhook.query.page }}
{{ initial.webhook.query.filter }}
{{ initial.webhook.headers['content-type'] }}
{{ initial.webhook.body }}
{{ initial.webhook.params }}

The webhook object contains:

Field	Description
webhook.body	Raw request body
webhook.query	URL query parameters (?key=value)
webhook.params	URL path parameters
webhook.headers	Request headers (lowercase keys)
webhook.files	Uploaded files (multipart/form-data) with base64 buffers

For JSON request bodies, all top-level fields are also accessible directly:

// POST body: { "userId": 123, "action": "sync" }
{{ initial.userId }}     // 123
{{ initial.action }}     // "sync"
{{ initial.webhook.query.debug }}  // query param ?debug=true

Form Triggers

Form submissions spread the submitted field values to the root and include a form context:

{{ initial.name }}
{{ initial.email }}
{{ initial.form.formName }}
{{ initial.form.submittedAt }}
{{ initial.form.authenticatedUser.username }}

The form object contains:

Field	Description
form.triggerId	The trigger ID
form.formName	Name of the form
form.submittedAt	ISO 8601 timestamp of submission
form.authenticatedUser	Present if the form requires authentication
form.authenticatedUser.username	The authenticated user’s username
form.authenticatedUser.connectionName	The form-auth connection used
form.authenticatedUser.metadata	Custom metadata from the form-auth connection

Schedule Triggers

Scheduled workflows receive the initialData configured in the trigger settings, spread directly to the root:

// initialData config: { "reportType": "daily", "emailTo": "admin@example.com" }
{{ initial.reportType }}   // "daily"
{{ initial.emailTo }}      // "admin@example.com"

Note

Schedule triggers don’t have a context object like webhooks or forms. Only the configured initialData fields are available.

Event Triggers

Event payloads from connected services are spread directly to the root of initial. The structure depends on the event provider:

{{ initial.eventType }}
{{ initial.data.agentId }}
{{ initial.data.newState }}

Manual Execution

When executing a workflow manually or via API, the provided initial data is spread to the root:

// API call: POST /workflow-templates/:id/execute { "initial": { "name": "John" } }
{{ initial.name }}   // "John"

Workflow Variables ($vars)

The set-variable step writes values into $vars. Each set-variable step merges its output into the existing $vars object, so values persist and accumulate across the workflow:

{{ $vars.customerName }}
{{ $vars.retryCount | default: 0 }}

Connections ($connections)

Reference connection credential objects by their connection name:

{{ $connections.my-salesforce }}
{{ $connections.postgres.host }}

See Connections for setup guides.

Environment Variables ($env)

Reference encrypted environment variables. Variables from the workflow’s default environment are available at the root level:

{{ $env.API_KEY }}
{{ $env.DATABASE_URL }}

Variables from other environments are scoped by environment name:

{{ $env.staging.API_KEY }}

See Environments for details on setup and connection redirection.

Operational Errors ($errors)

$errors is a running array of every operational and execution error that has occurred in the workflow up to the current step. Use it in Continue on Error recovery steps to inspect what went wrong without having to remember which step failed. See the Error Handling guide for the full model.

Each entry has this shape:

{{ $errors | size }}                       // total entries so far
{{ $errors[0].stepId }}                    // step that produced the error
{{ $errors[0].type }}                      // 'operational' or 'execution'
{{ $errors[0].message }}                   // human-readable error message
{{ $errors[0].code }}                      // machine code (e.g., HTTP_CLIENT_ERROR)
{{ $errors[0].severity }}                  // 'error' or 'warning'

$errors is populated even when Continue on Error isn’t set — but in that case the workflow halts on the first error, so only the failing step’s entry is visible. With Continue on Error enabled on a step (or globally), downstream steps can branch on $errors to react to upstream failures.

Utilities ($util)

$util provides zero-input generators — each call produces a fresh value:

Utility	Type	Description
$util.uuid	string	Random UUID v4
$util.now	string	Current ISO 8601 timestamp
$util.timestamp	number	Unix timestamp (milliseconds)
$util.timestampSeconds	number	Unix timestamp (seconds)
$util.today	string	Today’s date (YYYY-MM-DD)
$util.fileTimestamp	string	File-safe date/time (YYYY-MM-DD_HHmmss)
$util.random	number	Random integer 0–100
$util.randomFloat	number	Random float 0–1
$util.password	string	Secure random 16-character password
$util.randomHex	string	32 random hex characters
$util.randomBase64	string	32 random bytes as base64
$util.emptyObject	object	Empty {}
$util.emptyArray	array	Empty []
$util.true	boolean	Boolean true
$util.false	boolean	Boolean false
$util.null	null	Null value

Example:

{{ $util.uuid }}
// → "a1b2c3d4-e5f6-7890-abcd-ef1234567890"

{{ $util.now }}
// → "2026-02-18T14:30:00.000Z"

Filters

Filters transform values using the pipe (|) syntax:

{{ fetch-users.name | upcase }}
{{ fetch-users.items | size }}
{{ some-step.createdAt | date: "%Y-%m-%d" }}

QuickFlo supports all standard LiquidJS filters (string, math, array, date, etc.) plus the custom filters listed below.

Encoding

Filter	Description	Example
base64Encode	Encode string to Base64	{{ "hello" | base64Encode }} → aGVsbG8=
base64Decode	Decode Base64 string	{{ "aGVsbG8=" | base64Decode }} → hello
fromJson	Parse JSON string to object	{{ jsonString | fromJson }}
toJson	Convert value to JSON string	{{ obj | toJson }}

Auth

Filter	Description	Example
basicAuth	Base64-encode username:password	{{ "user" | basicAuth: "pass" }}
basicAuthHeader	Full Basic ... header value	{{ "user" | basicAuthHeader: "pass" }}
basicAuthHeaderFromObject	Basic auth header from object with username/password fields	{{ creds | basicAuthHeaderFromObject }}

Type Conversion

Filter	Description	Example
toString	Convert to string (objects become JSON)	{{ 123 | toString }} → "123"
toNumber	Convert to number (0 if invalid)	{{ "42" | toNumber }} → 42
toInt	Convert to integer (truncates decimal)	{{ "12.9" | toInt }} → 12
toFloat	Convert to float	{{ "12.5" | toFloat }} → 12.5
toBoolean	Convert to boolean ("true", "1", "yes" → true)	{{ "true" | toBoolean }} → true
toArray	Wrap value in array (parses JSON strings)	{{ "hello" | toArray }} → ["hello"]

Array

Filter	Description	Example
array	Create array from arguments	{{ "" | array: 1, 2, 3 }} → [1, 2, 3]
range	Create number range	{{ 0 | range: 5 }} → [0, 1, 2, 3, 4]
find	Find first item where field equals value	{{ users | find: "id", 42 }}
distinctBy	Remove duplicates by field	{{ users | distinctBy: "email" }}
distinctByFields	Remove duplicates by multiple fields	{{ items | distinctByFields: "name", "email" }}
arrayConcat	Concatenate arrays	{{ arr1 | arrayConcat: arr2 }}
push	Add item to end of array	{{ items | push: "new" }}

Object

Filter	Description	Example
pick	Keep only specified keys	{{ user | pick: "name", "email" }}
omit	Remove specified keys	{{ user | omit: "password" }}
keys	Get array of object keys	{{ user | keys }}
values	Get array of object values	{{ user | values }}
objectMerge	Merge objects together	{{ defaults | objectMerge: overrides }}

String

Filter	Description	Example
padStart	Pad string at start to target length	{{ "5" | padStart: 3, "0" }} → "005"
padEnd	Pad string at end to target length	{{ "hi" | padEnd: 5, "." }} → "hi..."
substring	Extract substring by index	{{ "hello" | substring: 1, 4 }} → "ell"
includes	Check if string contains substring	{{ "hello" | includes: "ell" }} → true
startsWith	Check if string starts with prefix	{{ "hello" | startsWith: "he" }} → true
endsWith	Check if string ends with suffix	{{ "hello" | endsWith: "lo" }} → true
strConcat	Concatenate multiple values	{{ "Hello" | strConcat: " ", "World" }} → "Hello World"
stripDiacritics	Remove accents and diacritical marks (é→e, ñ→n, ü→u)	{{ "José García" | stripDiacritics }} → "Jose Garcia"

Comparison

Filter	Description	Example
eq	Equal	{{ status | eq: "active" }}
ne	Not equal	{{ status | ne: "deleted" }}
gt	Greater than	{{ age | gt: 18 }}
gte	Greater than or equal	{{ score | gte: 100 }}
lt	Less than	{{ price | lt: 50 }}
lte	Less than or equal	{{ count | lte: 10 }}

Logic

Filter	Description	Example
coalesce	First non-null value	{{ value | coalesce: "fallback" }}
ternary	Conditional value selection	{{ isAdmin | ternary: "Admin", "User" }}
and	Logical AND	{{ hasAccess | and: isActive }}
or	Logical OR	{{ isAdmin | or: isManager }}
not	Logical NOT	{{ isDeleted | not }}

Math

Filter	Description	Example
min	Minimum of values	{{ 5 | min: 3, 8 }} → 3
max	Maximum of values	{{ 5 | max: 3, 8 }} → 8
sum	Sum all numbers in array	{{ amounts | sum }}
avg	Average of numbers in array	{{ scores | avg }}

Date & Time

Filter	Description	Example
now	Current ISO 8601 timestamp	{{ "" | now }}
timestamp	Current Unix timestamp (ms)	{{ "" | timestamp }}
formatCurrentDateTime	Format current time	{{ "" | formatCurrentDateTime: "YYYY-MM-DD" }}

Cryptography

Filter	Description	Example
hash	Cryptographic hash (sha256, sha512, md5)	{{ "data" | hash }} or {{ "data" | hash: "md5" }}
hmac	HMAC signature	{{ "message" | hmac: "secret" }}
password	Generate secure random password	{{ "" | password }} or {{ "" | password: 24, false }}
randomHex	Random hex string	{{ "" | randomHex }} → 32 hex characters
randomBase64	Random base64 string	{{ "" | randomBase64 }}

Telephony

All telephony filters use libphonenumber-js for parsing and validation.

Filter	Description	Example
toE164	Convert to E.164 international format	{{ "202-555-1234" | toE164: "US" }} → +12025551234
e164ToNanpa	Convert E.164 to NANPA national format	{{ "+12025551234" | e164ToNanpa }} → (202) 555-1234
isValidPhone	Check if phone number is valid	{{ "202-555-1234" | isValidPhone: "US" }} → true
isValidE164	Check if strictly valid E.164 format	{{ "+12025551234" | isValidE164 }} → true
formatPhone	Format to NATIONAL, INTERNATIONAL, or E.164	{{ "+12025551234" | formatPhone: "INTERNATIONAL" }}
phoneCountry	Get ISO country code	{{ "+12025551234" | phoneCountry }} → US
phoneCallingCode	Get country calling code	{{ "+12025551234" | phoneCallingCode }} → 1
phoneNationalNumber	Get national number without country code	{{ "+12025551234" | phoneNationalNumber }} → 2025551234

The toE164, isValidPhone, and formatPhone filters accept an optional default country code (e.g., "US") for parsing numbers without a country prefix.

Row-Level Variables

When using data transformation steps like map, filter, or reduce, these variables are available within each iteration:

Variable	Description
{{ $item }}	Current item being processed
{{ $original }}	Original item before transformation
{{ $this }}	Alias for $item (useful for primitives)
{{ $index }}	Zero-based iteration index
{{ $isFirst }}	true for the first item
{{ $isLast }}	true for the last item

Example in a map step expression:

{{ $item.firstName }} {{ $item.lastName }} ({{ $index }})

Liquid Control Flow

These tags work inside Liquid template strings (step config fields, return values, etc.). For if/switch steps and data-pipeline predicates, see Conditionals & Data-Pipeline Logic below.

Templates support LiquidJS control flow tags for conditional content:

{% if fetch-users.$meta.success %}
  Found {{ fetch-users.data | size }} users
{% else %}
  Step failed: {{ fetch-users.$meta.error.message }}
{% endif %}

See the LiquidJS tags documentation for if/elsif/else, unless, case/when, for loops, and more.

Conditionals & Data-Pipeline Logic (JSONLogic)

core.if, core.switch, and the predicates inside data.filter, data.reduce, and data.classify evaluate JSONLogic expressions — not Liquid. JSONLogic is a JSON-shaped expression language with operators as keys and operands as arrays.

Template-Form Operands

The recommended way to reference data inside a JSONLogic operand is the template form — wrap a Liquid expression in a string:

{ "==": ["{{ $item.status }}", "active"] }

QuickFlo’s resolver renders the templates first, then hands the rendered tree to the JSONLogic evaluator. This is the same syntax you use everywhere else in step config, so there’s nothing new to learn.

The legacy form uses a var operator with a path string:

{ "==": [{ "var": "$item.status" }, "active"] }

Both forms still work, but the template form is preferred — it’s consistent with the rest of the platform and supports filters, default values, and the full Liquid grammar inside the operand.

Available Operators

Category	Operators
Equality	==, !=, ===, !==
Comparison	>, <, >=, <=
Logic	and, or, !, !!
Branching	if (ternary-style)
Membership	in (substring or array contains)
Existence	var, missing, missing_some
Arithmetic	+, -, *, /, %, min, max
String	cat (concat), substr, strlen
Regex	matches — case-sensitive regex match (QuickFlo-specific, with an internal LRU cache)
Debug	log

Examples

core.if — branch on a step output:

{
  "stepId": "is-paid",
  "stepType": "core.if",
  "input": {
    "condition": { ">": ["{{ fetch-customer.body.balance }}", 0] },
    "then": { "steps": [ /* charge them */ ] },
    "else": { "steps": [ /* skip */ ] }
  }
}

core.switch — multiple cases on the same value:

{
  "stepId": "route",
  "stepType": "core.switch",
  "input": {
    "cases": [
      {
        "id": "north-america",
        "when": { "in": ["{{ initial.country }}", ["US", "CA", "MX"]] },
        "steps": [ /* ... */ ]
      },
      {
        "id": "europe",
        "when": { "in": ["{{ initial.country }}", ["UK", "DE", "FR"]] },
        "steps": [ /* ... */ ]
      }
    ],
    "default": { "steps": [ /* ... */ ] }
  }
}

data.filter — keep items matching a predicate:

{
  "stepId": "active-only",
  "stepType": "data.filter",
  "input": {
    "items": "{{ fetch-users.body.data }}",
    "filter": {
      "and": [
        { "==": ["{{ $item.status }}", "active"] },
        { ">": ["{{ $item.lastLoginDays }}", 0] }
      ]
    }
  }
}

data.reduce — conditional aggregation:

{
  "stepId": "summarize",
  "stepType": "data.reduce",
  "input": {
    "items": "{{ fetch-orders.body.data }}",
    "reduce": {
      "highValueCount": {
        "operation": "count",
        "condition": { ">": ["{{ $item.amount }}", 1000] }
      },
      "totalRevenue": {
        "operation": "sum",
        "field": "{{ $item.amount }}"
      }
    }
  }
}

matches — regex predicate:

{ "matches": ["{{ $item.email }}", "@(gmail|yahoo)\\.com$"] }

Note

Inside Liquid step config templates you write {{ ... }} directly. Inside JSONLogic operands you wrap the same {{ ... }} in a JSON string — QuickFlo resolves it before evaluation, so the data references behave identically.

Literal Blocks

Use {% literal %} to preserve template syntax that should not be resolved — useful when passing templates to external APIs:

{% literal %}Hello {{name}}, your order {{orderId}} is ready{% endliteral %}

This outputs the raw string Hello {{name}}, your order {{orderId}} is ready without resolving the {{ }} expressions.

Recursive Resolution

Templates support up to 5 levels of recursive resolution. This means a template can resolve to another template, which resolves again:

{{ $env.MY_CONNECTION }}

If $env.MY_CONNECTION contains the string {{$connections.production-db}}, the engine resolves it further to the actual connection object. This is the foundation of environment connection redirection.
