Form Triggers

Form triggers let you create hosted forms that trigger a workflow when submitted. QuickFlo includes a full drag-and-drop form builder with live preview, field validation, branding options, and optional password protection — no external form tools needed.

Each form gets a unique public URL that you can share with anyone. When someone submits the form, QuickFlo starts the workflow with the submitted values as input data.

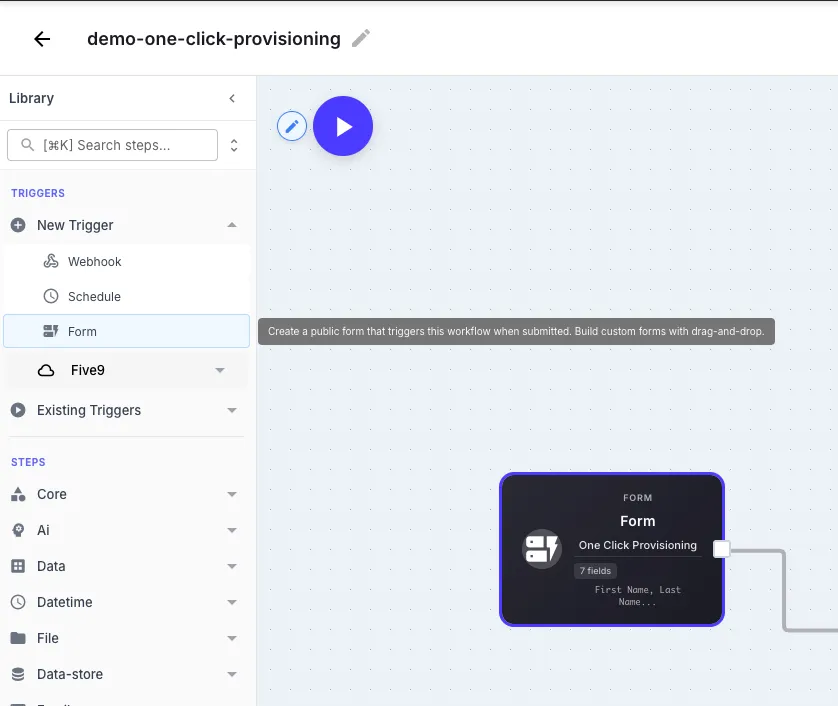

Adding a Form Trigger

1. Open a workflow in the builder

2. In the Library sidebar under Triggers, click Form

3. A form trigger node appears on the canvas — click it to configure

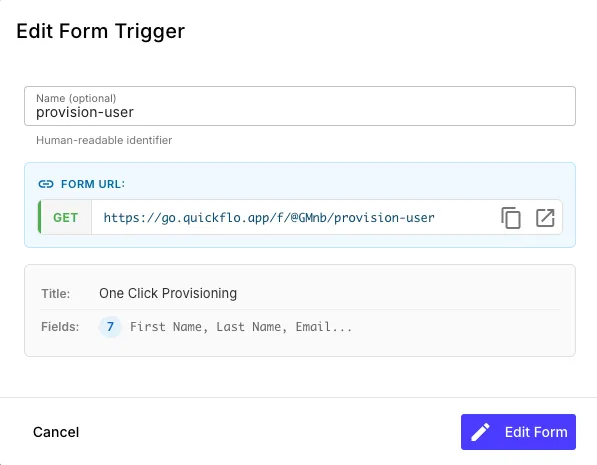

Once added, you should provide a unique form name. QuickFlo will generate a unique URL for the form using the name you provide. Click the trigger node to see the URL, edit the form, or open it in a new tab.

Field	Description
Name	Human-readable identifier for the trigger (optional)
Form URL	The public URL where the form is hosted — share this with users
Title	The form title shown at the top of the page
Fields	Summary of configured fields

Click Edit Form to open the form builder.

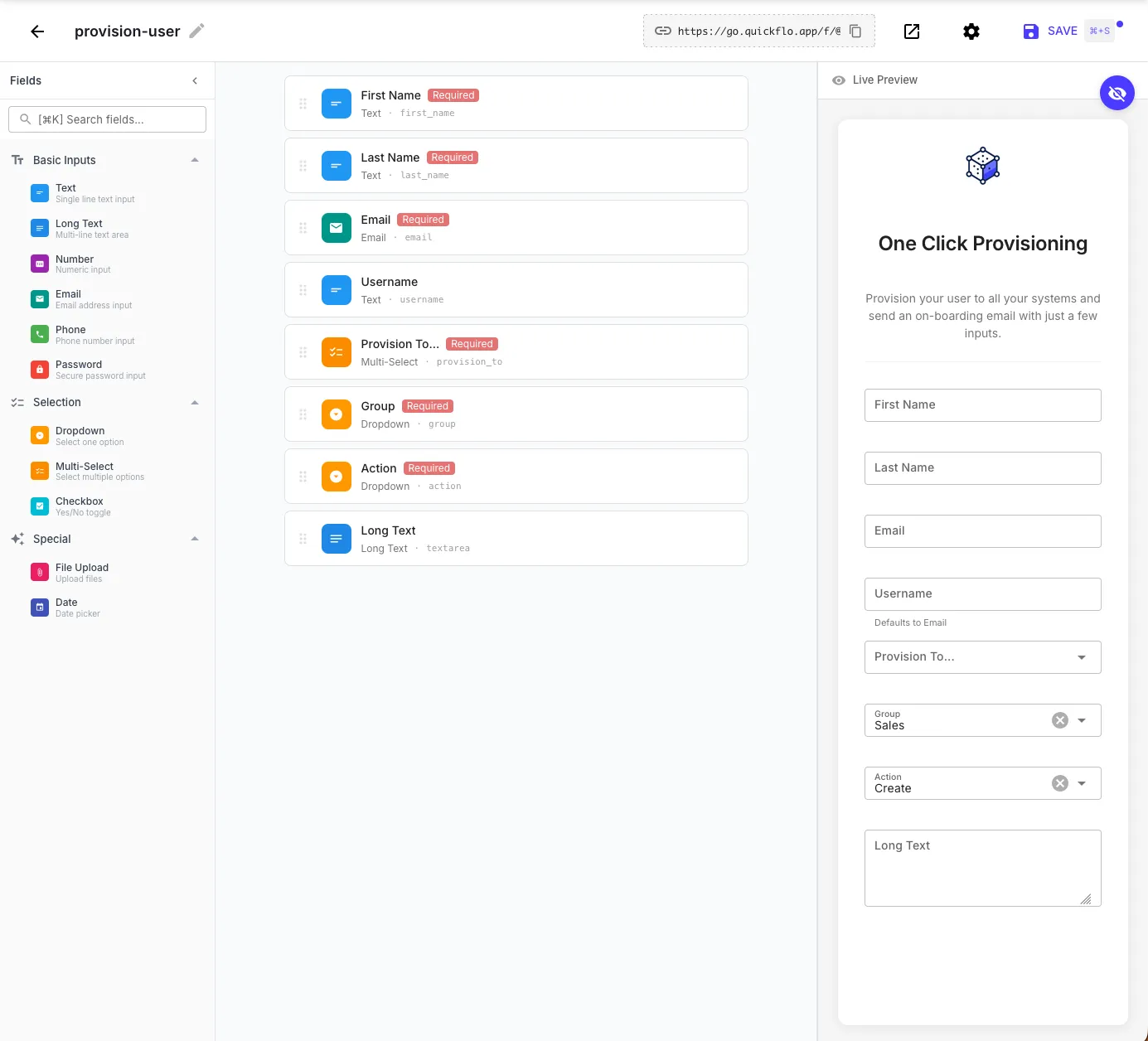

The Form Builder

The form builder is a visual drag-and-drop editor with three panels:

Fields palette (left) — drag field types onto the form:

Category	Field Types
Basic Inputs	Text, Long Text, Number, Email, Phone, Password
Selection	Dropdown, Multi-Select, Checkbox
Special	File Upload, Date

Form layout (center) — arrange fields, set labels, mark fields as required, and configure field IDs. The field ID is the key used to access the value in your workflow (e.g., a field with ID first_name is accessed as {{ initial.first_name }}).

Live preview (right) — see exactly what the form looks like to end users as you build it. The preview updates in real-time as you add and configure fields.

Configuring Fields

Click any field in the form layout to configure it:

• Label — the display name shown to users
• Field ID — the key used in template expressions (auto-generated from the label, or set manually)
• Required — whether the field must be filled before submission
• Placeholder — hint text shown inside the input
• Default value — pre-filled value (optional)

For Dropdown and Multi-Select fields, you also define the list of options.

Form Settings

Click the settings gear icon in the form builder toolbar to open Form Settings.

Branding

Customize the look of your hosted form page:

Field	Description
Logo URL	URL of an image displayed at the top of the form
Page Title	Custom browser tab title (defaults to the form title)
Favicon URL	Custom favicon for the hosted form page

Success and Error Messages

• Success message — shown to users after a successful submission (or use a Return step to control the response dynamically)
• Error message — custom message shown when submission fails

Data Import

Enable bulk upload mode to let users upload a CSV file to submit multiple entries at once. Each row in the CSV becomes a separate workflow execution.

Tip

Bulk upload is useful for batch operations — users can upload a spreadsheet of records and each row triggers the workflow independently.

Error Handling

Toggle Expose detailed error messages to control whether users see the actual error message from the workflow or a generic error. Keep this off in production to avoid leaking internal details.

---

Password Protecting Forms

By default, forms are public — anyone with the URL can submit them. To restrict access, you can require users to sign in with credentials before seeing the form.

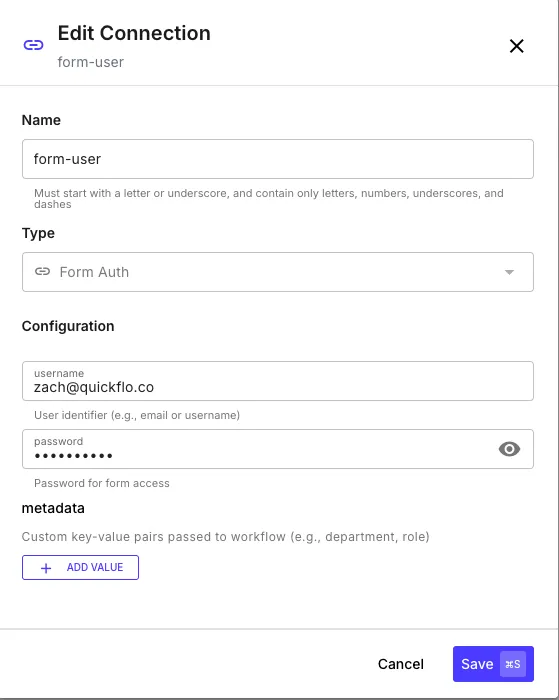

Step 1: Create a Form Auth Connection

Form users are managed as Form Auth connections. Each connection represents a username/password credential.

1. Navigate to Connections in the QuickFlo sidebar

2. Click New Connection and select Form Auth

3. Fill in the credentials:



   Field	Description
   Username	The user’s identifier (email, username, etc.)
   Password	Password for form access
   Metadata	Optional key-value pairs passed to the workflow on submission (e.g., department, role, permissions)

4. Click Save

You can create as many Form Auth connections as you need — each represents a different user who can access the form.

Note

Metadata values are accessible in the workflow via {{ initial.form.authenticatedUser.metadata }}. Use this to pass user-specific context like department, role, or tenant ID without the user needing to enter it.

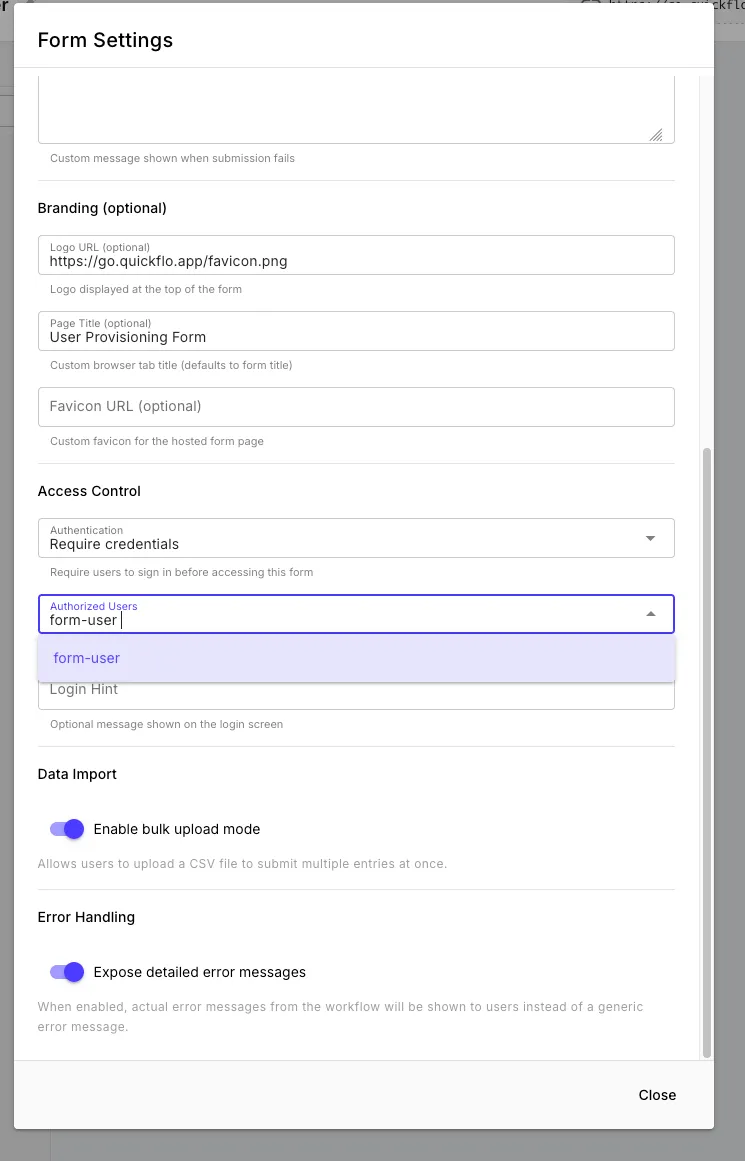

Step 2: Enable Authentication on the Form

1. Open the form builder and click the settings gear icon

2. Under Access Control, change Authentication to Require credentials

3. In Authorized Users, select the Form Auth connections that should have access

4. Optionally add a Login Hint — a message displayed on the sign-in screen (e.g., “Use your company email and the password provided by your admin”)

5. Close settings and save the workflow

Now when someone visits the form URL, they’ll see a login screen before the form loads. Only users with matching Form Auth credentials can access it.

---

Accessing Form Data in Workflows

When a form is submitted, the field values are available in the workflow via {{ initial.* }}:

{{ initial.first_name }}
{{ initial.email }}
{{ initial.group }}

The form context object provides submission metadata:

{{ initial.form.formName }}
{{ initial.form.submittedAt }}
{{ initial.form.triggerId }}

For authenticated forms, the user’s identity is also available:

{{ initial.form.authenticatedUser.username }}
{{ initial.form.authenticatedUser.connectionName }}
{{ initial.form.authenticatedUser.metadata.department }}

Responding to Submissions

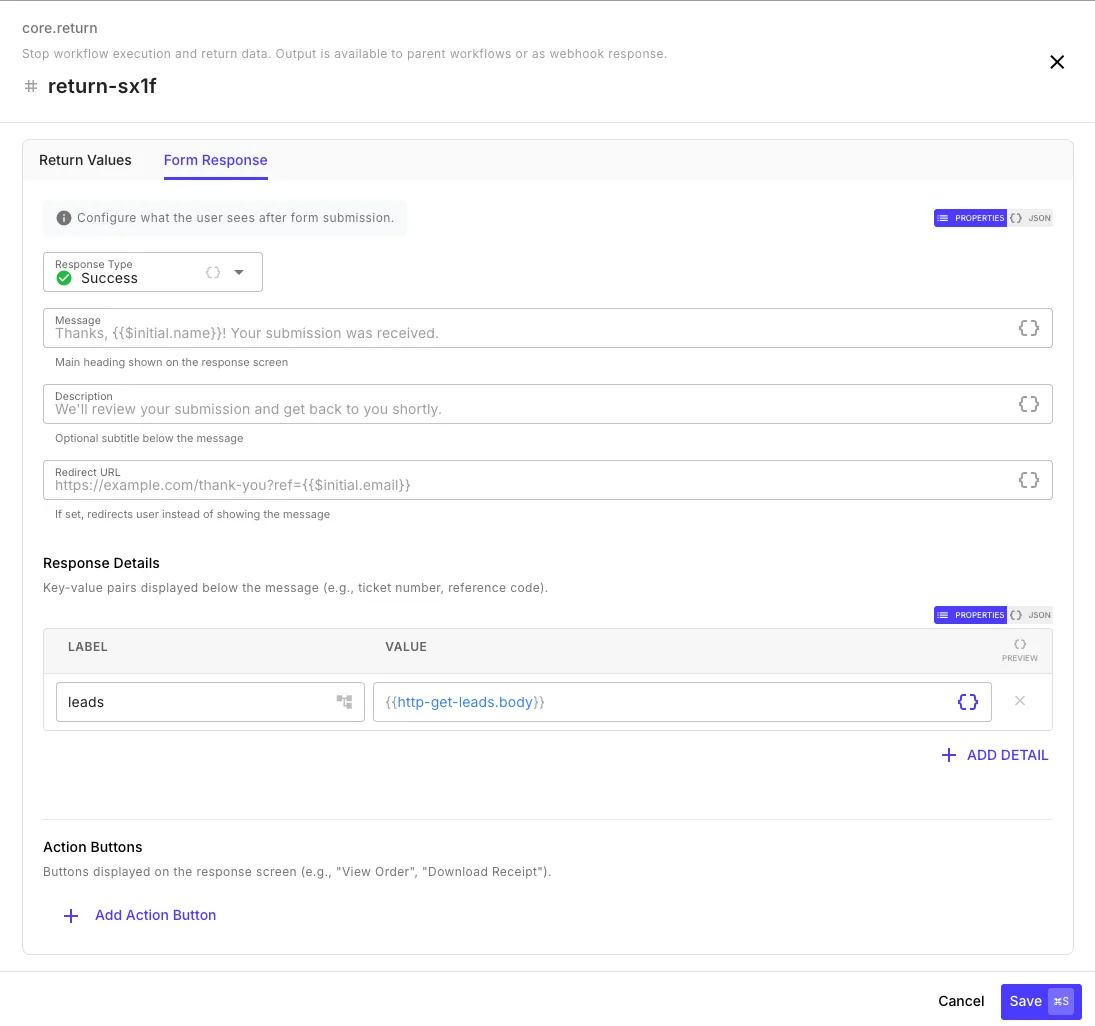

By default, users see a generic success message after submitting. To customize the response, add a Return step to your workflow — the step editor shows a Form Response tab when the workflow has a form trigger.

Response Fields

Field	Description	Example
Response Type	The visual style of the response screen	Success, Error, Warning, Info
Message	Main heading shown to the user — supports templates	Thanks, {{ initial.name }}! Your submission was received.
Description	Optional subtitle below the heading	We'll review your submission and get back to you shortly.
Redirect URL	If set, redirects the user instead of showing a message — supports templates	https://example.com/thank-you?ref={{ initial.email }}

All text fields support template expressions, so you can personalize the response with the submitted form data or values from earlier workflow steps.

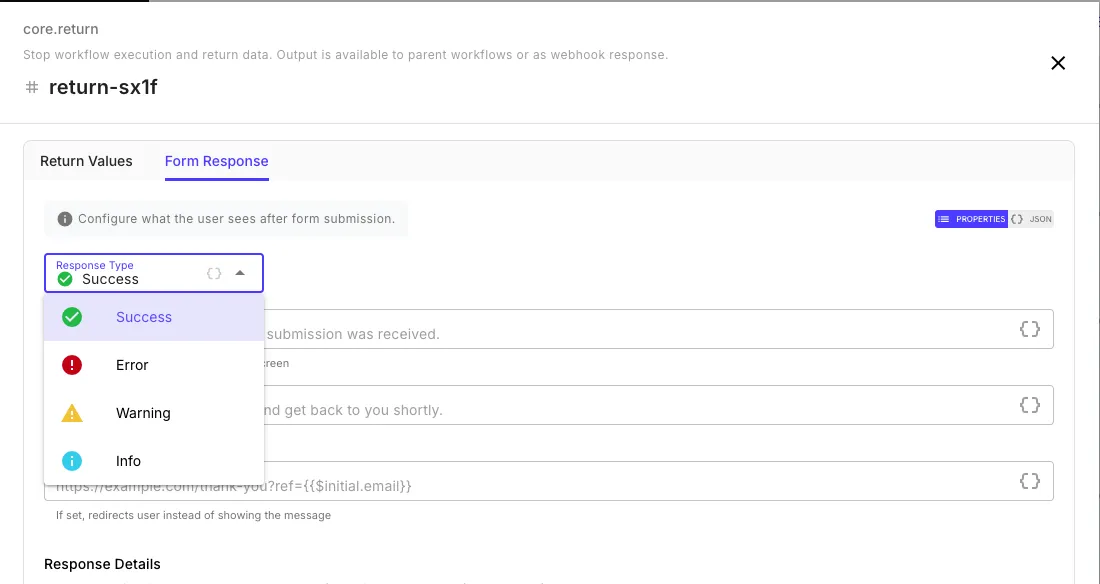

Response Types

The Response Type dropdown controls the icon and color theme of the response screen:

Type	Icon	Use Case
Success	Green checkmark	Submission processed successfully
Error	Red exclamation	Submission failed or was rejected
Warning	Yellow triangle	Submission accepted with caveats
Info	Blue info	Informational acknowledgment

Response Details

Add key-value pairs that are displayed below the message as a structured data table. This is useful for showing the user results from the workflow — like a reference number, a summary of what was processed, or data fetched from an API.

Label	Value
leads	{{ http-get-leads.body }}
Reference ID	{{ $util.uuid }}

Click + Add Detail to add more rows. Objects and arrays are rendered as formatted tables automatically.

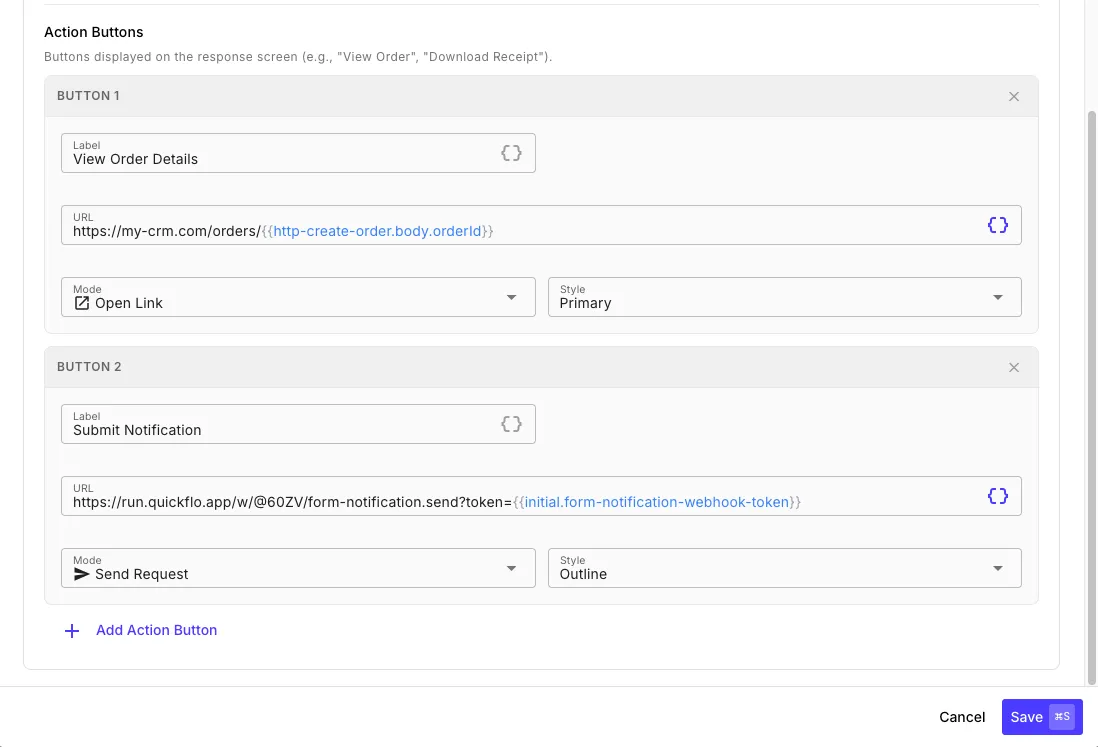

Action Buttons

Add buttons to the response screen for follow-up actions. Each button has a label, URL, mode, and style.

Field	Description
Label	Button text — supports templates
URL	The target URL — supports templates (e.g., https://my-crm.com/orders/{{ http-create-order.body.orderId }})
Mode	Open Link opens the URL in a new tab. Send Request fires an HTTP request to the URL without navigating away — useful for triggering another webhook or workflow.
Style	Primary (filled button) or Outline (bordered button)

Click + Add Action Button to add more. Buttons appear at the bottom of the response screen in the order you define them.

What the User Sees

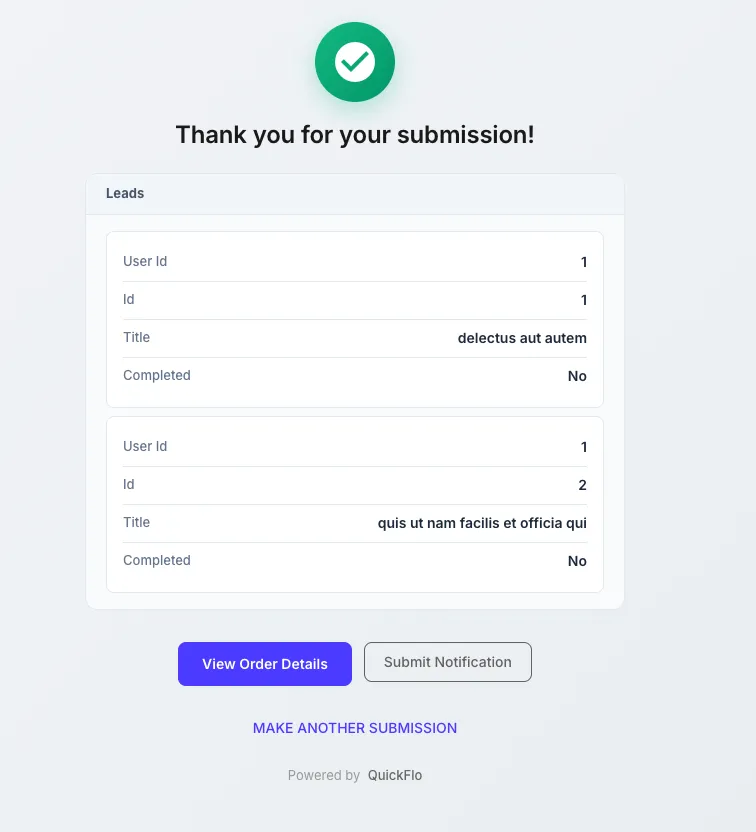

Successful submission — the response screen shows the message, response details as a formatted table, action buttons, and a “Make Another Submission” link:

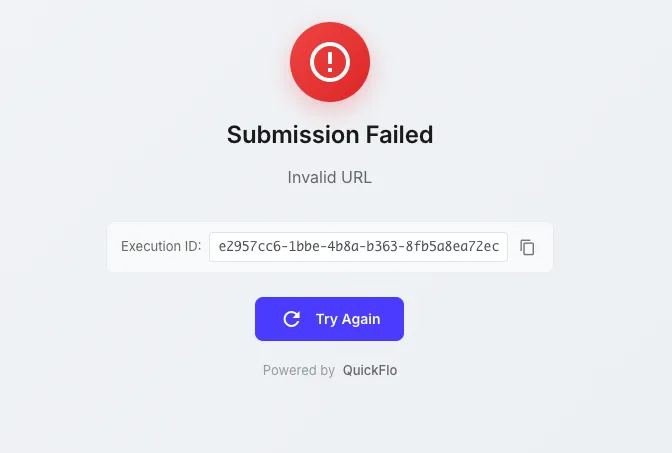

Failed submission — if the workflow errors and “Expose detailed error messages” is enabled in form settings, the user sees the error message along with the execution ID for debugging:

Tip

Because the Return step runs after the workflow completes, you can use data from earlier steps in your response — show a generated account ID, a summary table of processed records, or a link to the created resource.
