Return Step

The return step terminates workflow execution immediately and optionally sends a response back to the caller. All remaining steps after the return are skipped. The step editor changes its form fields based on the trigger type.

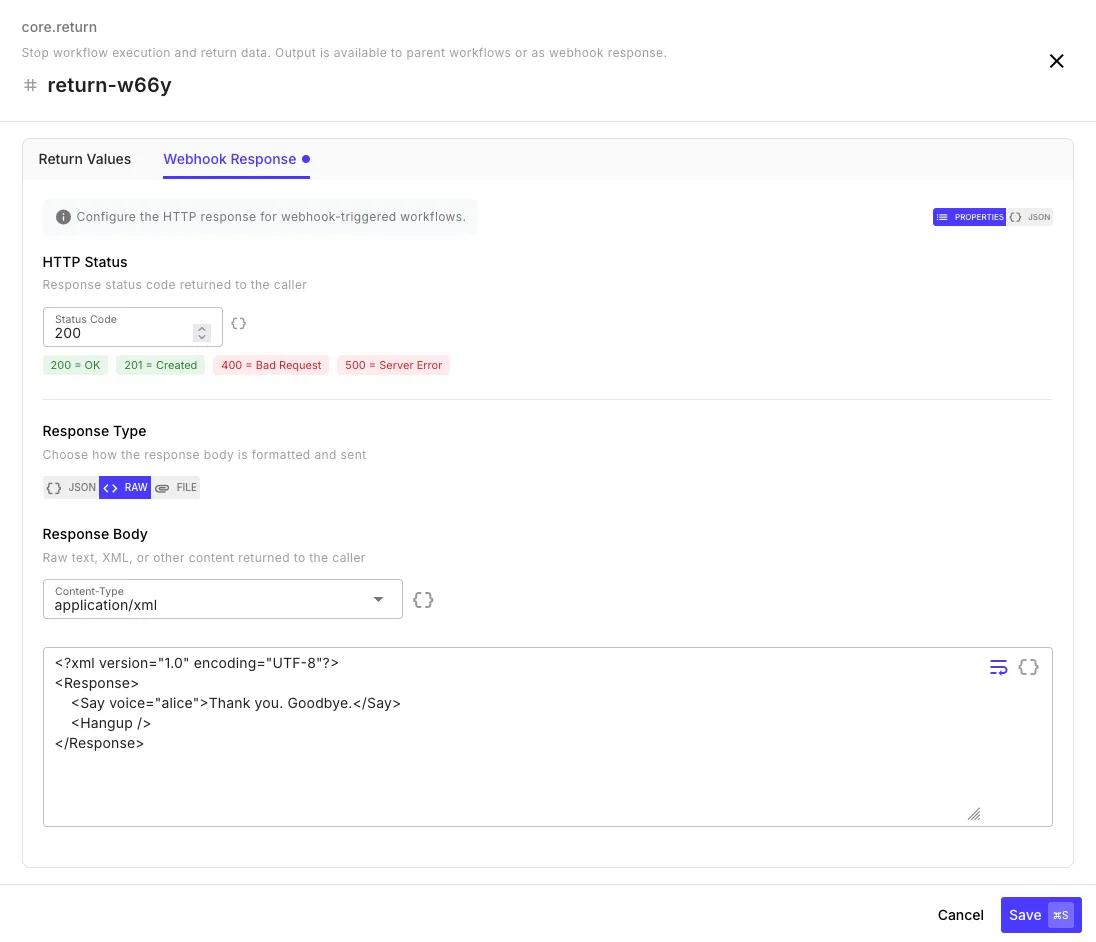

Webhook Response

When a workflow is triggered by a webhook, the return step controls what the webhook caller receives back as the HTTP response.

Basic response fields:

Field	Value
Status Code	201
Body	{ "success": true, "userId": "{{ create-user.id }}" }

Advanced webhook response fields — for file downloads or non-JSON responses:

Field	Description	Example
Status Code	HTTP status code to return	200
Body	Response body content	{{ generate-report.csv }}
Body Encoding	json, text, or base64	text
Content Type	MIME type for the response	text/csv
Filename	If set, triggers a file download in the caller’s browser	report.csv

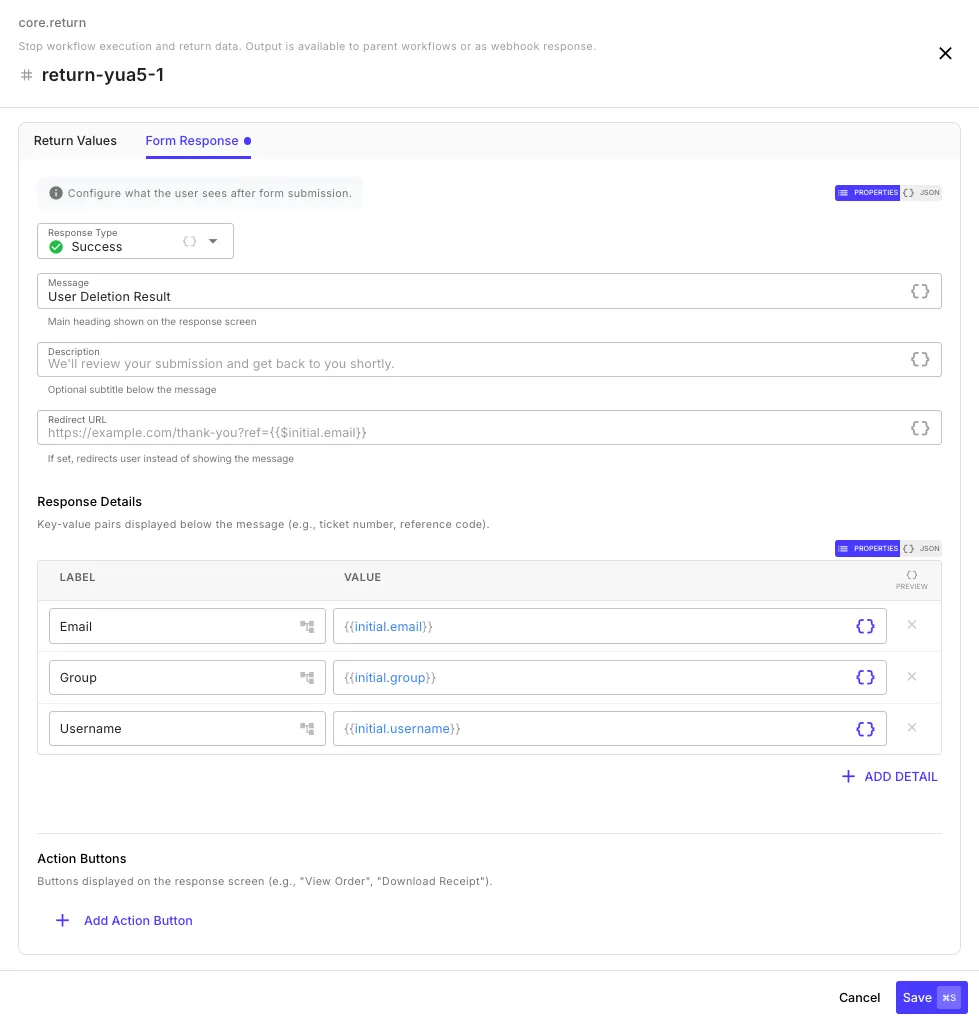

Form Response

When triggered by a form, the return step controls what the submitter sees after submission.

Field	Description	Example
Message	Main heading shown to the user	Thanks for submitting!
Description	Optional subtitle	Your request has been received.
Type	success, error, warning, or info	success
Redirect URL	If set, redirects instead of showing a message	https://example.com/thank-you

Sub-Workflow Return

When used inside a sub-workflow, the return step defines what the parent workflow receives as the step output. Add key-value pairs for each value to return:

Key	Value
userId	{{ user-check.id }}
status	completed

The parent workflow accesses these via the sub-workflow step ID:

{{ run-sub-workflow.userId }}
{{ run-sub-workflow.status }}

Conditional Returns

Each step has a Skip If condition in its settings. You can use this to make a return step conditional — for example, returning a 404 early if a lookup fails, while letting the workflow continue if it succeeds.

Sync vs Async Execution

QuickFlo workflows can execute synchronously (wait for completion and return the result) or asynchronously (queue in the background and return immediately). The return step is what determines which mode is used.

How It’s Determined

The default mode is auto, which decides based on the trigger type and whether a return step exists:

Trigger	Has Return Step with Response?	Mode
Webhook	Yes (status code / body defined)	Sync — caller waits, gets return step output
Webhook	No	Async — caller gets 202 Accepted with executionId
Form	Yes (form response defined)	Sync — submitter sees the response
Form	No	Async — submitter sees a default success message
Schedule	N/A	Async always
Manual/API	N/A	Async by default

Tip

If you want a webhook to return data to the caller, just add a Return step with a status code and body. QuickFlo automatically detects this and runs the workflow synchronously so the caller gets the response.

Overriding the Mode

You can force sync or async execution regardless of auto-detection:

• Query parameter: ?mode=sync or ?mode=async on the webhook/execution URL
• Workflow settings: Set the execution mode to sync or async in the workflow settings dialog

What the Caller Receives

Synchronous — The caller gets exactly what the return step defines, with the status code you set (default 200).

Asynchronous — The caller gets a 202 Accepted response with an executionId that can be used to check status later.
