Crypto Steps

The Crypto step provides nine cryptographic operations — hashing, HMAC, AES and RSA encryption/decryption, and key/password generation. Select the operation from a dropdown and the form adapts to show the relevant fields.

These are commonly needed for verifying webhook signatures, building API authentication headers, encrypting sensitive data in transit, and generating secure tokens.

Operations

Hash

Create a one-way hash of data.

Field	Description
Data	Text to hash
Algorithm	SHA-256 (default), SHA-512, or MD5
Encoding	Hex (default) or Base64

Output: { "result": "a3f2b8c..." }

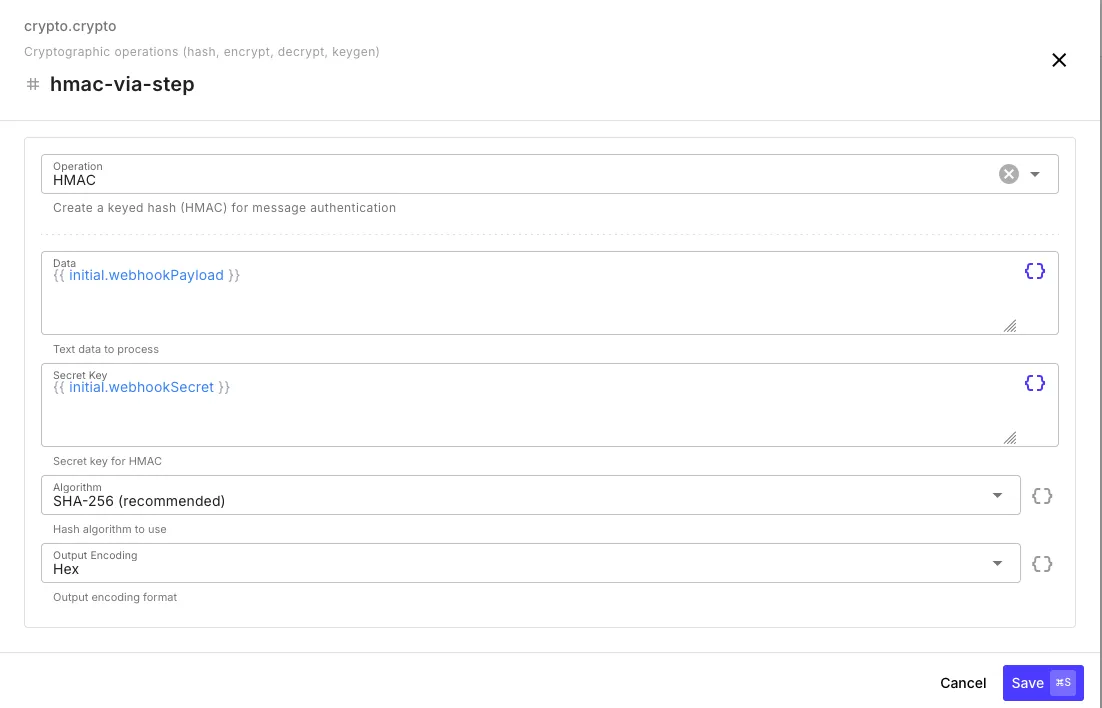

HMAC

Create a keyed hash for message authentication — the standard way to verify webhook signatures.

Field	Description
Data	Text to authenticate (e.g., the raw webhook payload)
Secret Key	Shared secret key
Algorithm	SHA-256 (default), SHA-512, or MD5
Encoding	Hex (default) or Base64

Output: { "result": "d4e5f6a..." }

Tip

Most webhook providers (Stripe, GitHub, Shopify) sign payloads with HMAC SHA-256. Use this operation to compute the expected signature and compare it against the header value to verify authenticity.

Encrypt (AES)

Encrypt data using AES-256 symmetric encryption.

Field	Description
Data	Text to encrypt
Key	AES-256 key (hex, base64, or raw string — raw strings are hashed to derive the key)
Algorithm	AES-256-GCM (default, recommended) or AES-256-CBC
Encoding	Hex (default) or Base64

Output: { "result": "encrypted...", "iv": "abc123...", "authTag": "def456..." }

The iv (initialization vector) and authTag (GCM only) are required for decryption. Pass the full output object to the Decrypt step.

Decrypt (AES)

Decrypt AES-encrypted data. Accepts the output from an Encrypt step directly.

Field	Description
Data	Encrypted data — accepts the Encrypt step’s output object, a JSON string, or individual fields
Key	Same key used for encryption
Algorithm	Must match the encryption algorithm
Encoding	Must match the encryption encoding

Output: { "result": "original text" }

Encrypt (RSA)

Encrypt data using an RSA public key.

Field	Description
Data	Text to encrypt
Key	RSA public key in PEM format
Padding	OAEP (default, recommended) or PKCS#1 v1.5
OAEP Hash	SHA-256 (default), SHA-384, or SHA-512
Encoding	Base64 (default) or Hex

Output: { "result": "encrypted..." }

Decrypt (RSA)

Decrypt RSA-encrypted data using a private key.

Field	Description
Data	Encrypted string
Key	RSA private key in PEM format
Padding	Must match encryption padding
OAEP Hash	Must match encryption hash
Encoding	Must match encryption encoding

Output: { "result": "original text" }

Generate RSA Keypair

Generate a new RSA public/private key pair.

Field	Description
Key Size	2048 (default), 3072, or 4096 bits

Output: { "publicKey": "-----BEGIN PUBLIC KEY-----...", "privateKey": "-----BEGIN PRIVATE KEY-----..." }

Generate AES Key

Generate a random AES-256 encryption key (32 bytes).

Field	Description
Encoding	Hex (default) or Base64

Output: { "key": "a1b2c3d4..." }

Generate Password

Generate a secure random password.

Field	Description
Length	4–128 characters (default: 16)
Characters	All, alphanumeric, alpha, uppercase, lowercase, numbers, or special

Output: { "password": "xK9#mP2&..." }

Common Patterns

Verifying a Webhook Signature

Most services sign webhook payloads with HMAC. Here’s a typical verification flow:

1. Crypto (HMAC) — compute HMAC-SHA256 of {{ initial.rawBody }} with the shared secret
2. If — compare {{ crypto-hmac.result }} against {{ initial.headers.x-signature }}
3. Continue or return a 401

Encrypting Data Before Storage

1. Generate AES Key — or load one from {{ $env.ENCRYPTION_KEY }}
2. Encrypt (AES) — encrypt the sensitive value
3. Data Store Set — store the encrypted result
4. Decrypt (AES) — retrieve and decrypt when needed

Building an API Auth Signature

Some APIs (AWS Signature V4, Twilio) require HMAC-based authentication headers:

{{ crypto-hmac.result }}

Use the HMAC step to compute the signature, then pass it as a header in an HTTP step.
