Audio Steps

QuickFlo includes five audio processing steps powered by FFmpeg. Convert between formats, trim by time or silence, merge multiple files, extract audio from video, and probe metadata — all without external services or custom code.

Audio sources can come from managed storage, GCS, S3, or SFTP, or be passed as base64 data from a previous step.

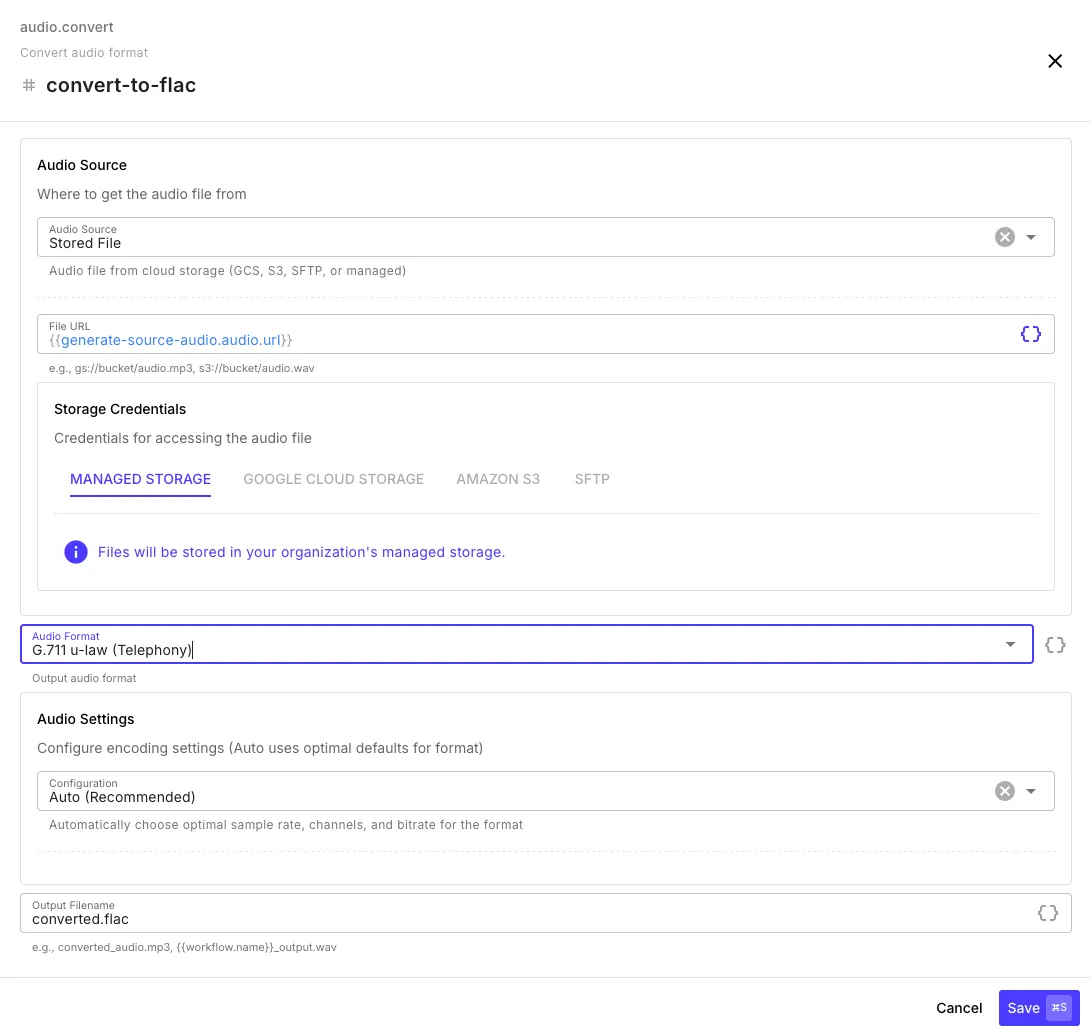

Audio Convert

Convert audio between formats with optional sample rate, channel, and bitrate adjustments.

Field	Description
Audio Source	Stored file URL or base64 data
Audio Format	Target format (see supported formats below)
Configuration	Auto (recommended) or manual sample rate, channels, and bitrate
Output Filename	Custom filename — supports templates like `{{workflow.name}}_output.wav`

Auto mode selects optimal settings per format. Switch to Manual to override sample rate (8–48 kHz), channels (mono/stereo), and bitrate (64–320 kbps).

Supported Formats

Format	Use case
MP3	General purpose, widely compatible
WAV	Uncompressed, lossless
FLAC	Lossless compression
OGG Vorbis	Open format, good compression
AAC	Apple/iTunes compatible
M4A	Apple audio (MP4 container)
Opus	Modern codec, excellent quality/compression ratio
WebM	Web standard
G.711 u-law	Telephony standard (8 kHz mono)
G.711 A-law	Telephony standard (8 kHz mono)

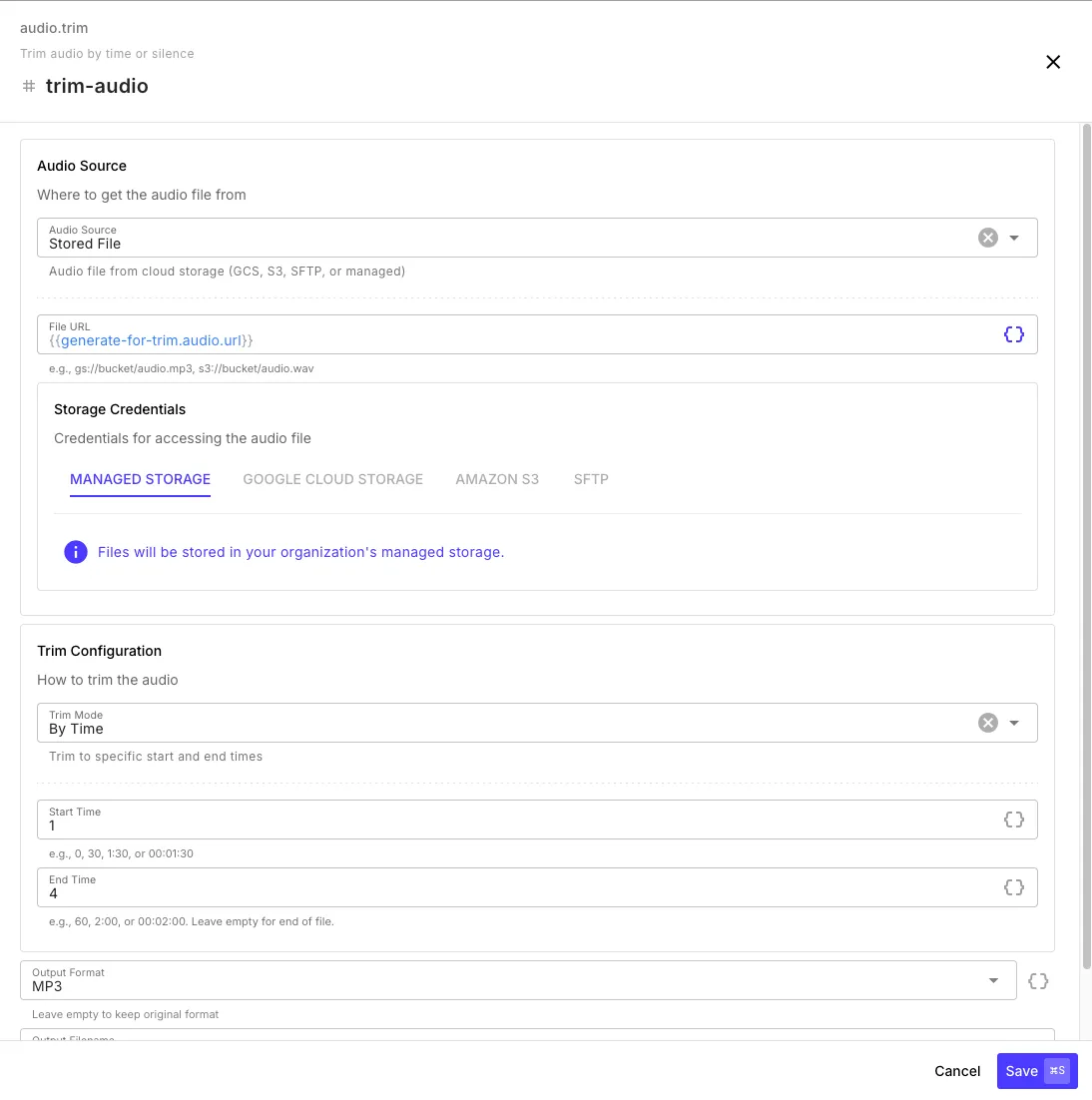

Audio Trim

Trim audio by time range or by detecting and removing silence.

By Time

Field	Description
Start Time	Where to begin — seconds (`30`), MM:SS (`1:30`), or HH:MM:SS (`00:01:30`)
End Time	Where to stop — leave empty for end of file
Output Format	Leave empty to keep the original format

By Silence

Automatically detect and remove silent regions from the beginning and/or end of the audio.

Field	Description
Threshold	Silence sensitivity in dB (`-50` recommended)
Min Duration	How long silence must last to be trimmed (`1` second recommended)
Trim Start / End	Choose which sides to trim

The step output includes originalDurationMs and trimmedStartMs / trimmedEndMs so you can see exactly what was removed.

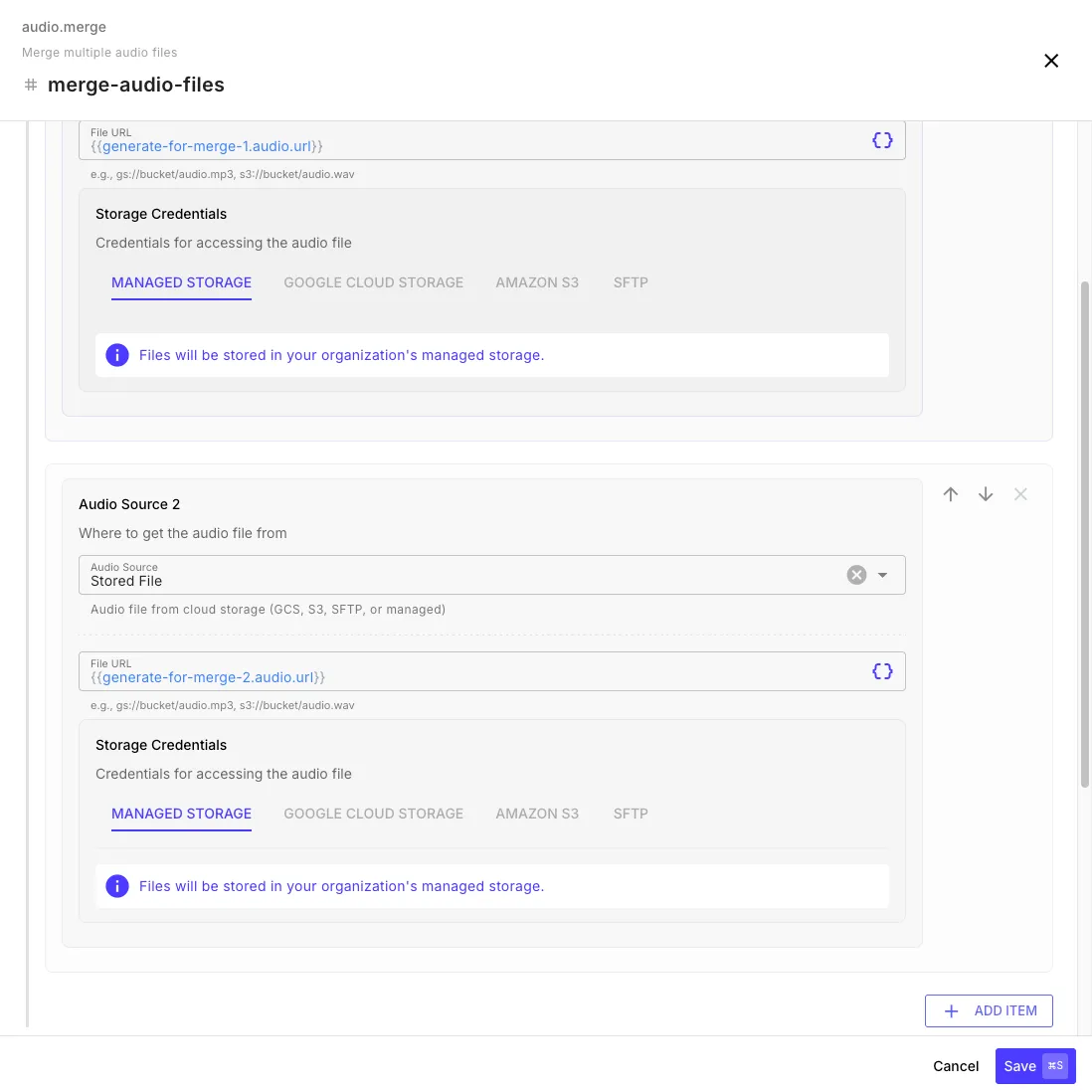

Audio Merge

Combine multiple audio files by concatenation (sequential) or mixing (overlay).

Field	Description
Audio Files	Two or more audio sources (click Add Item for more)
Mode	Concatenate (play in sequence) or Mix (overlay simultaneously)
Output Format	Target format for the merged output
Configuration	Auto or manual sample rate and channels

Concatenate plays files one after another — output duration is the sum of all inputs. Mix overlays all files at the same time — output duration matches the longest input.

Audio Extract

Extract the audio track from a video file. Supports MP4, MKV, WebM, AVI, MOV, WMV, and FLV.

Field	Description
Video Source	Video file URL (managed, GCS, S3, or HTTP)
Output Format	Audio format for the extracted track
Configuration	Auto or manual encoding settings

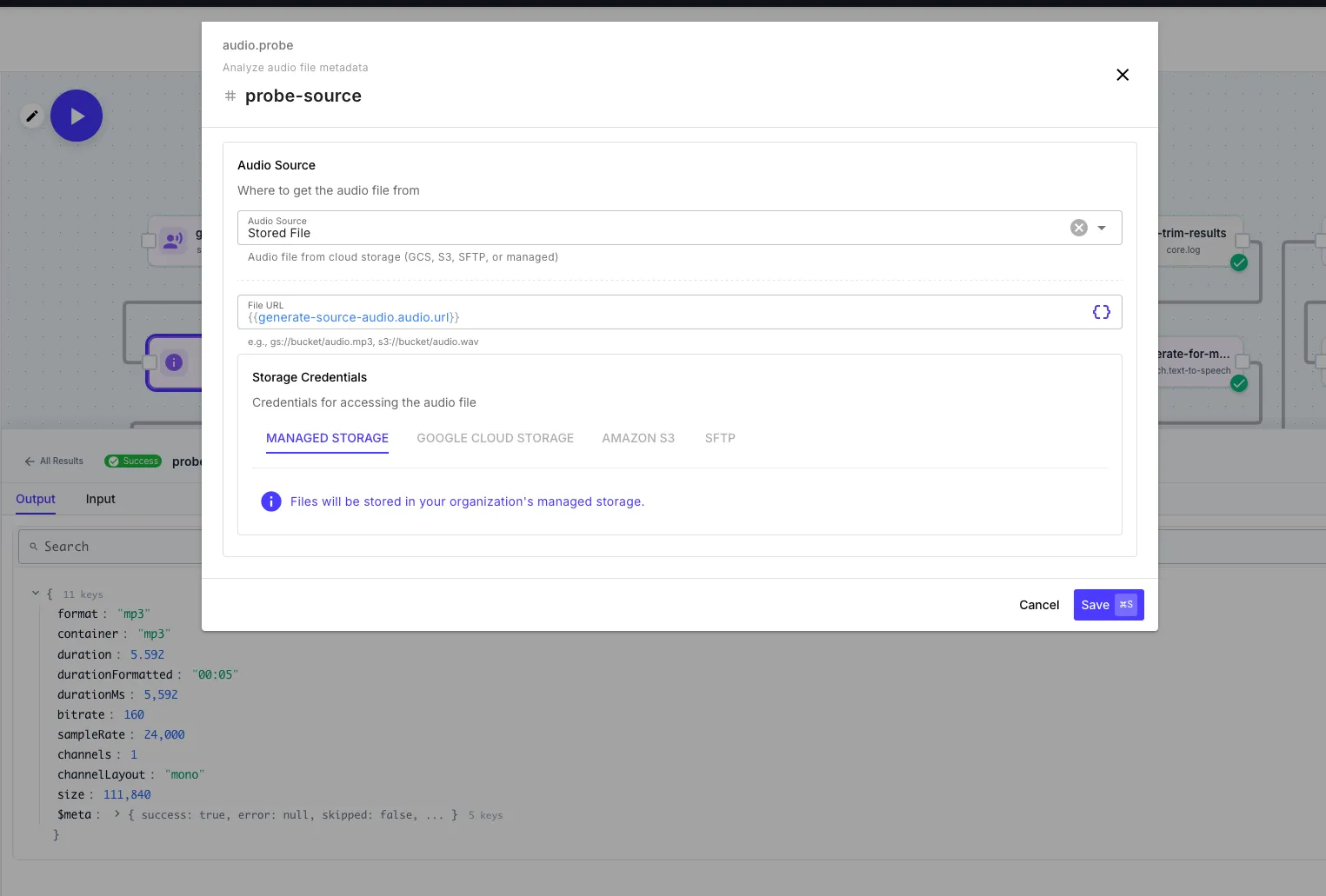

Audio Probe

Analyze an audio file’s metadata without processing it. Returns format, duration, sample rate, channels, bitrate, and file size.

Output Fields

Field	Description
`format`	Audio codec (e.g., `mp3`, `aac`, `pcm_s16le`)
`container`	Container format (e.g., `mp3`, `wav`, `m4a`)
`duration`	Duration in seconds
`durationFormatted`	Duration as `HH:MM:SS`
`bitrate`	Bitrate in kbps
`sampleRate`	Sample rate in Hz
`channels`	Number of channels (1 = mono, 2 = stereo)
`size`	File size in bytes

Step Output

All audio processing steps (except Probe) return an audio object:

{
  "audio": {
    "url": "gs://your-org/audio/converted_abc123.mp3",
    "filename": "converted_abc123.mp3",
    "format": "mp3",
    "size": 245760
  },
  "durationMs": 5392
}

Reference the output URL in later steps:

{{ audio-convert.audio.url }}
